Watts Series LF215 Super Sensitive Low Pressure Regulators
Series LF215 Super Sensitive Low Pressure Regulators are designed to meet low pressure precision requirements. The high ratio of diaphragm to orifice provides excellent performance and stability at low reduced pressure. The Series LF215 is ideally suited for water requirements up to 2.5 gpm (9.5 lpm) due to its Lead Free* brass body and brass & stainless steel internal parts. The LF215 is also suitable for pressure supply to wall attachment fluidic devices. The LF215 features Lead Free* construction to comply with Lead Free* installation requirements.

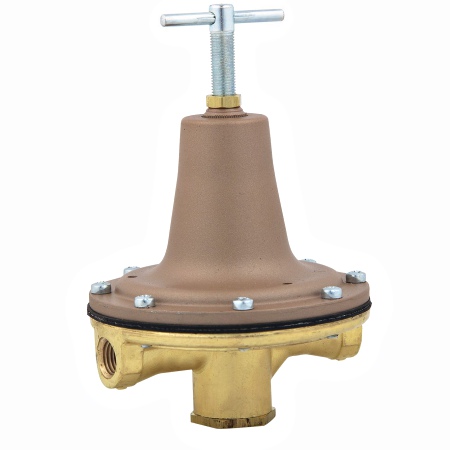

This 0009842 3/8 inch Lead Free Precision Low Pressure Regulator consists of a lead free brass body with a tee handle, female NPT connections, replaceable stainless steel seat, large diaphragm, and 30 mesh stainless steel strainer. The reduced water pressure range is 0 to 50 psi (0 to 345 kPa) with the water pressure set at 15 psi (103 kPa). The temperature range is 0 to 120 degrees F (-18 to 49 degrees C).
Features:
| Connection Size | 3/8 inch |
|---|---|
| Temperature Range | 0°F – 120°F (-18°C – 49°C) |
| Maximum Working Pressure | 300psi (20.7 bar) |
| Standard Reduced Pressure Setting | 15 psi (103 kPa) |
| Reduced Pressure Range | 0 – 50 psi (0 – 345 kPa) |
| Body Material | Lead Free Brass |
| Seat Material | Stainless Steel |
| Strainer | Stainless Steel |
