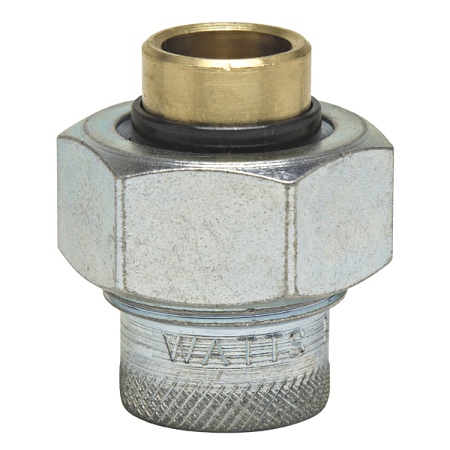

Watts Series LF3001A Dielectric Unions
Series LF3001A dielectric unions feature a female iron pipe thread to solder connection. These unions are designed to be installed between pipe made from dissimilar metals to prevent accelerated corrosion and deterioration in the piping system due to galvanic and stray current. The LF3001A features Lead Free* construction to comply with Lead Free* installation requirements.
FEATURES:
| Maximum Pressure | 250psi (17.2 bar) with standard gasket A; 50psi (3.4 bar) with optional gasket B |
|---|---|
| Maximum Temperature | 180°F (82°C) with standard gasket A; 300ºF (149ºC) with optional gasket B |
| Inlet/Outlet Connection Size | 3/4 inch |
| Inlet Connection Type | Female Threaded |
| Outlet Connection Type | Socket |
| Gasket Material | Buna-N |
| Inlet Material | Steel |
| Outlet Material | Lead Free Brass |
| Inlet Thread Type | NPT |
Download Product Information:
