Watts Series LF3001A Dielectric Unions
Series LF3001A dielectric unions feature a female iron pipe thread to solder connection. These unions are designed to be installed between pipe made from dissimilar metals to prevent accelerated corrosion and deterioration in the piping system due to galvanic and stray current. The LF3001A features Lead Free* construction to comply with Lead Free* installation requirements.

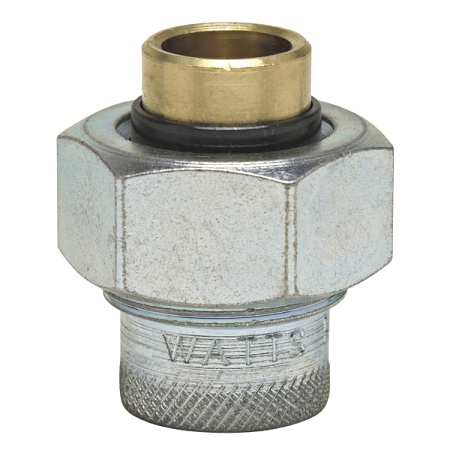

This 0009867 1 1/4 inch lead free dielectric union is used in commercial and residential applications to prevent accelerated corrosion and deterioration in the piping system due to galvanic and stray current. It is installed between pipes made from dissimilar metals and is used on applications such as hot water storage tanks, water and air conditioners, processing tanks, steam, gas, and water piping. It consists of a female iron pipe thread to solder connection, union nut, two tailpieces, and a Buna-N gasket that separates the tailpieces to prevent an electric current from occurring.
| Maximum Pressure | 250psi (17.2 bar) with standard gasket A; 50psi (3.4 bar) with optional gasket B |
|---|---|
| Maximum Temperature | 180°F (82°C) with standard gasket A; 300ºF (149ºC) with optional gasket B |
| Inlet/Outlet Connection Size | 1 1/4 inch |
| Inlet Connection Type | Female Threaded |
| Outlet Connection Type | Socket |
| Gasket Material | Buna-N |
| Inlet Material | Polysulfone |
| Outlet Material | Lead Free Brass |
| Inlet Thread Type | NPT |
