Watts Series LF3002 Dielectric Unions

Series LF3002 dielectric unions feature a female iron pipe thread to reduced solder connection. These unions are designed to be installed between pipe made from dissimilar metals to prevent accelerated corrosion and deterioration in the piping system due to galvanic and stray current. The LF3002 features Lead Free* construction to comply with Lead Free* installation requirements.

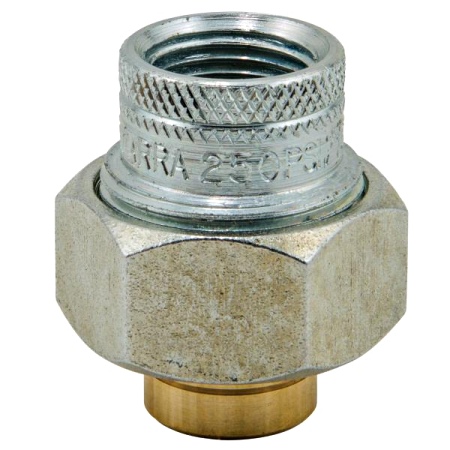

This 1 inch lead free dielectric union is used in commercial and residential applications to prevent accelerated corrosion and deterioration in the piping system due to galvanic and stray current. It is installed between pipes made from dissimilar metals and is used on applications such as hot water storage tanks, water and air conditioners, processing tanks, steam, gas, and water piping. It consists of a female iron pipe thread to reduced solder connection, union nut, two tailpieces, and a Buna-N gasket that separates the tailpieces to prevent an electric current from occurring. The maximum temperature is rated up to 180 degrees F (82 degrees C) at 250 psi (17.2 bar).

FEATURES:


• Female iron pipe thread to reduced solder connection
• Designed and manufactured to the highest quality standards
• Individually factory certified to withstand a minimum of 600 volts on a dry line with no flashover
• Rated to 180°F (82°C) at 250psi (17.2 bar)
