Watts Series LFF127W Flanged High Capacity Water Pressure Reducing Valves

Model LF127W and LFF127W High Capacity Water Pressure Reducing Valves are designed to reduce incoming water pressure to a sensible level to protect plumbing system components and reduce water consumption. The LF127W and LFF127W are remote control type regulators ideal for commercial and industrial applications where a regulator must reach full capacity with a minor drop in reduced pressure. These models are also suitable for applications where close pressure regulation is required through extensive volume demand. These models are suitable for water supply pressures up to 175psi (12.1 bar) and may be adjusted from 25 – 100psi (172 – 690 kPa). All parts are quickly and easily serviceable. The LF127W and LFF127W feature Lead Free* construction to comply with Lead Free* installation requirements.

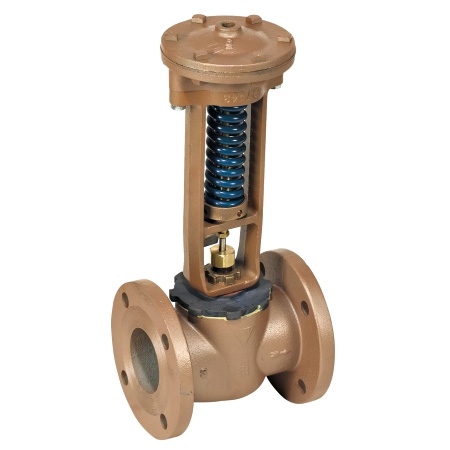

This 0009906 4 inch lead free high capacity water pressure reducing valve features a triple coated corrosion preventative iron body, flanged inlet and outlet connections, replaceable disc, interchangeable diaphragm chamber, replaceable stainless steel seat and stainless steel stem. The maximum working pressure is 175 psi (12.06 bar), and the adjustable reduced pressure range is 25 to 100 psi (1.7 to 7.0 bar). The temperature range is 33 to 160 degrees F (0.5 to 71 degrees C).

Features:


• Lead Free* body construction
• Replaceable stainless steel seat
• Outstanding maintenance features
• Close control of reduced pressure
• High temperature-resisting diaphragm
• Interchangeable diaphragm chamber
