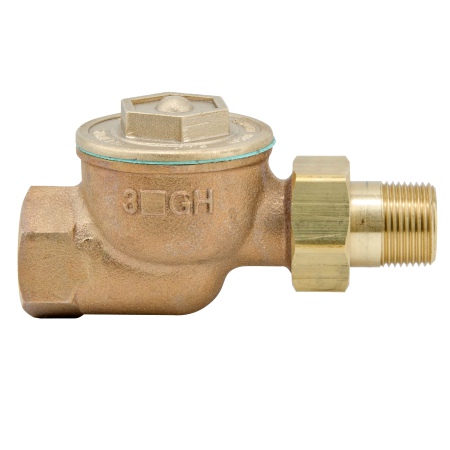

Watts 0036051 Thermostatic Radiator Steam Traps 3/4" (STMTMSTTRP-3MGHSW)

SKU: 0036051

Brand:

Rating:

Quantity	Price	Stock
Usually Ships 1-2 Weeks Usually Ships 1-2 Weeks	$326.61 /ea	Usually Ships 1-2 Weeks

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

Watts Series G, GH, MG, MGH Thermostatic Radiator Steam Traps

Series G, GH, MG, MGH Thermostatic Radiator Steam Traps are designed to remove condensate, air and non-condensable gases from heating systems, while still sensitive enough to close tightly in the presence of steam. The balanced pressure duplex phosphor bronze diaphragm is a highly sensitive modulating unit thermally programmed to provide accurate steam conserving operation. Available in a choice of various body patterns including angle, straightway, left hand corner, right hand corner, vertical and vertical double union. For operating pressures up to 65psi (4.5 bars).

Features:

Rugged brass construction with union inlet. Duplex phosphor bronze diaphragm sensitive within 3°F
Hardened stainless steel valve
Stainless steel valve seat
Diaphragm and seat both replaceable
Uniform operation within pressure range
Superior operation under highest vacuum
Each trap factory tested
Standard patterns in 1⁄2", 3⁄4", and 1" (15, 20, 25mm)

Maximum Operating Temperature	267F
Maximum Working Pressure	65 psi
Body Pattern	Straight
Connection Size	3/4 inch
Maximum Steam Pressure	65 psi
Body Material	Brass

Download Product Information:

Watts Series G, GH, MG, MGH Thermostatic Radiator Steam Traps Datasheet
