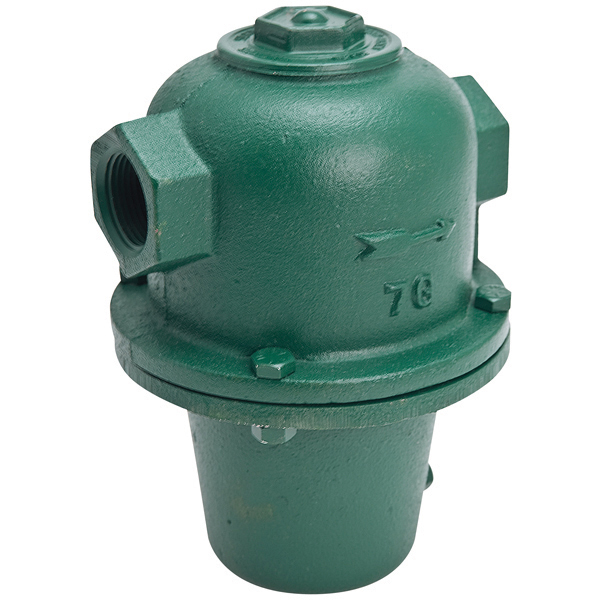

Watts Series G, MG Float and Thermostatic Steam Traps

Series G, MG Float and Thermostatic Steam Traps are used in steam main drip and process applications to remove condensate, air, and non-condensable gases from steam systems. They feature an iron body with a straight-through design, stainless steel valve head & seat, phosphor bronze diaphragm, seamless copper float and rust preventive enamel finish. Series G, MG steam traps are water hammer resistant, and in-line serviceable. They are ideal for use in steam coils, unit heaters, drip points, heat exchangers, water heaters, absorption machines, unit ventilators, air handlers, make-up air coils, reheat coils, and jacketed kettles. Models 6G-15 to 101G-15 have a pressure range of 25" Hg to 15psi. Models 7MG-30 to 101MG-30 have a pressure range of 25" HG to 30psi. Models 6MG-50 to 101MG-50 have a pressure range of 25" HG to 50psi.

Features:

• Fail safe — In case of float failure, trap will discharge condensate and air; no unit freeze-up
• Air vent parts — accessible without disturbing piping
• Inlet baffle — breaks up water hammer; prevents damage to parts
• Snap action valve — no wire-drawing or valve chatter
• Two moving parts — no levers, hinges or pins to corrode or jam
• Straight-through connections — saves installation time, labor, space, headroom
• Stainless steel valve head and seats
• Seamless copper float — no seams to develop leaks
• Uniform operations — not affected by changes in load or pressures
• Condensate valve rotates — ensures even wear, longer valve and seat life
