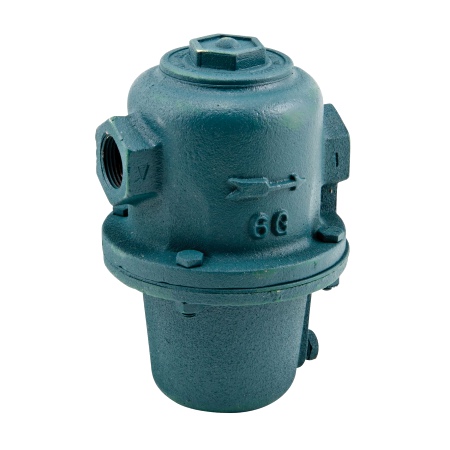

Watts 0036156 Float Trap 1" (STM-F&TTRP-7MGF-50)

Name: Watts 0036156 Float Trap 1" (STM-F&TTRP-7MGF-50)
Brand: Watts
SKU: 0036156
Price: 1227.97 USD
Availability: OutOfStock

Images for general purposes only. Actual may be different than depicted.

Watts 0036156 Float Trap 1" (STM-F&TTRP-7MGF-50)

SKU: 0036156

Brand:

Rating:

Quantity	Price	Stock
Usually Ships 1-2 Weeks Usually Ships 1-2 Weeks	$1,227.97 /ea	Usually Ships 1-2 Weeks

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

Watts Series G, MG Float & Thermostatic Steam Traps

Series G, MG Float & Thermostatic Steam Traps are designed for use on modulating process equipment and as main distribution line drip traps. Series G, MG Float & Thermostatic steam traps feature a straight through design for fast simple installation. Stainless steel valve head and seats provide long service life. G, MG series steam traps have excellent air venting capability and discharge condensate at near to steam temperature so the steam space remains free of condensate providing improved steam system efficiency. For operating pressures up to 50psi (3.5 bars).

This 0036156 1 inch Float Trap has a Pressure Range of 25” Hg to 50 psig.

Features:

Fail safe — In case of float failure, trap will discharge condensate and air; no unit freeze-up
Air vent parts — accessible without disturbing piping
Inlet baffle — breaks up water hammer; prevents damage to parts
Snap action valve — no wire-drawing or valve chatter
Two moving parts — no levers, hinges or pins to corrode or jam
Straight-through connections — saves installation time, labor, space, headroom
Stainless steel valve head and seats
Seamless copper float — no seams to develop leaks
Uniform operations — not affected by changes in load or pressures
Condensate valve rotates — ensures even wear, longer valve and seat life

Connection Size	1 inch
Pressure Range	25â€ Hg to 50 psig
Body Material	Cast Iron
Body Pattern	Straight

Download Product Information:

Watts Series G, MG Float & Thermostatic Steam Traps Technical Datasheet
