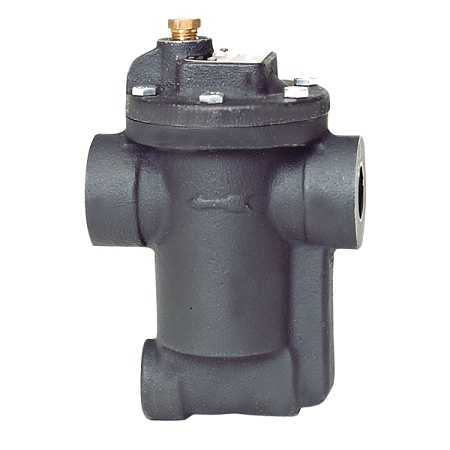

Watts 0039508 Inverted Bucket Steam Trap 1/2" WIB-81-15

Name: Watts 0039508 Inverted Bucket Steam Trap 1/2" WIB-81-15
Brand: Watts
SKU: 0039508
Price: 413.85 USD
Availability: OutOfStock

Images for general purposes only. Actual may be different than depicted.

Watts 0039508 Inverted Bucket Steam Trap 1/2" WIB-81-15

SKU: 0039508

Brand:

Rating:

Quantity	Price	Stock
Usually Ships 1-2 Weeks Usually Ships 1-2 Weeks	$413.85 /ea	Usually Ships 1-2 Weeks

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

Watts Series WIB Inverted Bucket Steam Traps

Series WIB Inverted Bucket Steam Traps are used in steam main and process applications to provide reliable condensate removal. They feature an iron body, stainless steel bucket and linkage, stainless steel valve and seat and non-asbestos cover gasket. Series WIB is water hammer resistant and drains condensate at saturation temperatures. Maximum Operating Pressure: 150psi (10 bar) for Model WIB 80; 250psi (17 bar) for Model WIB 81.

Features:

In-line connections
Hardened stainless steel valve and seat
Cast iron body construction
Stainless steel bucket
Test plug
Drain plug

Valve & Seat Material	Stainless Steel
Body Material	Cast Iron
Maximum Operating Pressure	250psi (17 bar)
Maximum Allowable Temperature	406Â°F (208Â°C)
Maximum Allowable Pressure	250psi (17 bar)
Connection Size	1/2 inch
Standpipe Material	Steel Pipe
Cover Gasket Material	Non-asbestos
Maximum Steam Pressure	15 psi

Download Product Information:

Watts Series WIB Inverted Bucket Steam Traps Technical Datasheet

Watts Series WIB Inverted Bucket Steam Traps Installation Guide
