Watts Series 007 Double Check Valve Assemblies

Series 007 Double Check Valve Assemblies prevent the backflow of contaminated water into the potable water supply. It consists of a bronze (1/2 to 2 in) body construction that is easy to maintain and service. Series 007 is ideal at referenced cross-connections identified as non-health hazard applications. Check with local inspection authorities for installation requirements. Maximum Working Pressure: 175psi (12.06 bar).

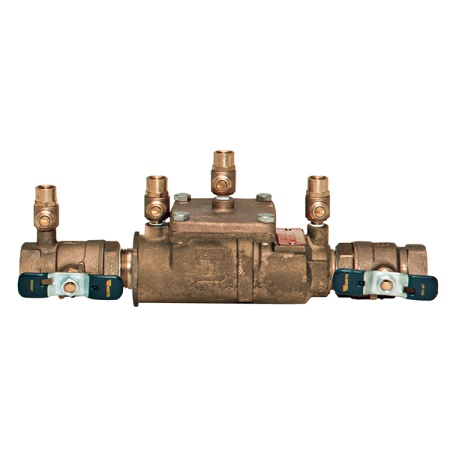

This 0062308 1 inch double check valve assembly consists of a bronze body construction, union end connections, quarter turn ball valve shutoffs, top mounted test cocks, two in-line independent positive seating check modules, captured springs, replaceable check discs and seats, and strainer.

Features:


• Ease of maintenance — only one cover
• Top entry
• Replaceable seats and seat discs
• Modular construction
•  Compact design
• Cast bronze body construction — 1⁄2" – 2"
• Top mounted ball valve test cocks
• Low pressure drop
• No special tools required for servicing
• 1⁄2" – 1" have tee handles
