Watts 0062733 Double Check Detector Assembly 2" (007M1DCDA-FP-CFM)

Name: Watts 0062733 Double Check Detector Assembly 2" (007M1DCDA-FP-CFM)
Brand: Watts
SKU: 0062733
Price: 4809.33 USD
Availability: OutOfStock

Images for general purposes only. Actual may be different than depicted.

Watts 0062733 Double Check Detector Assembly 2" (007M1DCDA-FP-CFM)

SKU: 0062733

Brand:

Rating:

Quantity	Price	Stock
Usually Ships 1-2 Weeks Usually Ships 1-2 Weeks	$4,809.33 /ea	Usually Ships 1-2 Weeks

Add to Cart

Add to Wishlist

Shipping Note

Ships by Truck (LTL)

Add to Cart

Add to Wishlist

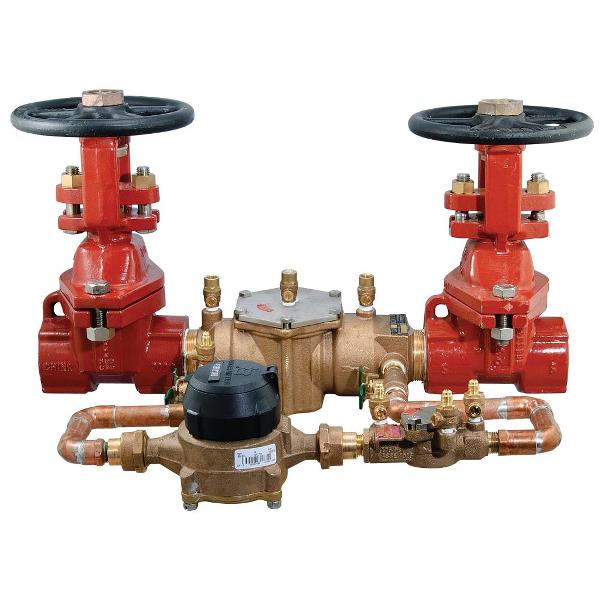

Watts Model 007M1DCDA Double Check Detector Assembly

The Model 007M1DCDA Double Check Detector Assembly is specifically designed to protect against possible backpressure and backsiphonage conditions for non-health hazard (i.e., pollutant) application in accordance with Local Governing Water Utility Code. This assembly is primarily used on commercial fire sprinkler systems where Local Governing Code mandates protection from non-potable quality water being pumped or siphoned back into the potable water system. Maximum Working Pressure: 175psi (12.06 bar).

Features:

Compact Design for Ease of Installation
Inline Serviceable Assembly
No Special Tools Required for Servicing
Captured Modular Spring Loaded Checks Field Replaceable Seats & Discs
Field Replaceable Auxiliary Bypass Line & Components

Size	2 inch
Maximum Working Pressure	175 psi
Minimum Working Pressure	10 psi
Hydrostatic Test Pressure	350 psi
Hydrostatic Safety Pressure Rating	700 psi
Continuous Operating Range	33Â°F-110Â°F (0.5Â°C-43Â°C)
Intermittent Operating Range	up to 140Â°F (60Â°C)
Body Material	Cast Bronze
Elastomers	Silicone
O-Rings	EPDM

Download Product Information:

Watts Double Check Detector Assembly Catalog

Watts 007M1DCDA Double Check Detector Assembly Specification Sheet
