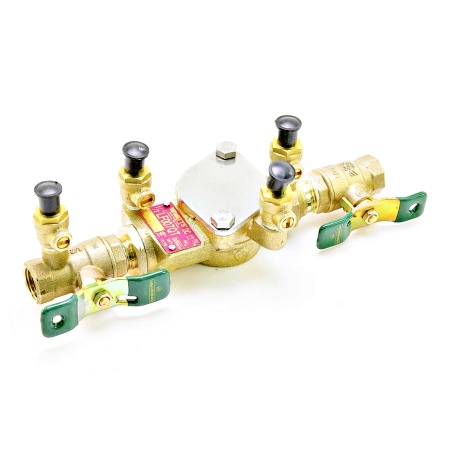

Watts 0063230 Lead Free Double Check Valve Assembly 1/2" (LF007-QT)

Watts 0063230 Lead Free Double Check Valve Assembly 1/2" (LF007-QT)
Images for general purposes only. Actual may be different than depicted.
Watts 0063230 Lead Free Double Check Valve Assembly 1/2" (LF007-QT)

Watts 0063230 Lead Free Double Check Valve Assembly 1/2" (LF007-QT)

SKU: 0063230
Rating:
Quantity Price Stock
Usually Ships 1 Week
Usually Ships 1 Week
$342.52     /ea
Usually Ships 1 Week

The 0063230 found on this page, is a direct replacement for the following obsolete item(s):

Obsolete Product SKU
Watts 0062131 Back Flow Preventer Check Valve 007QT 1/2" 0062131

Brand Watts
Watts 0062131 Back Flow Preventer Check Valve 007QT 1/2"
0
$0.00
0
$0.00
0
0063230
Watts Series LF007 Double Check Valve Assemblies

Series LF007 Lead Free* Double Check Valve Assemblies prevent the backflow of contaminated water into the potable water supply. It consists of a Lead Free* cast copper silicon alloy (1/2 to 2 in) or fused epoxy coated cast iron (2 1/2 to 3 in) body construction that is easy to maintain and service. Series LF007 is ideal at referenced cross-connections identified as non-health hazard applications. Check with local inspection authorities for installation requirements. Maximum Working Pressure: 175psi (12.06 bar).

Features:

  • Ease of maintenance — only one cover
  • Top entry
  • Replaceable seats and seat discs
  • Modular construction
  • Compact design
  • Lead Free cast copper silicon alloy body construction — 1⁄2" – 2" (15 – 50mm)
  • Fused epoxy coated cast iron body — 21⁄2" – 3" (65 – 80mm)
  • Top mounted Lead Free* ball valve test cocks
  • Low pressure drop
  • No special tools required for servicing
  • 1⁄2" – 1" (15 – 25mm) have tee handles
Connection Size 1/2 inch
Temperature Range 33°F – 180°F (0.5°C – 82°C)
Maximum Working Pressure 175psi (12.1 bar)
Shutoff Valve Type Quarter Turn Ball Valve
Body Material Cast Copper Silicon Alloy
