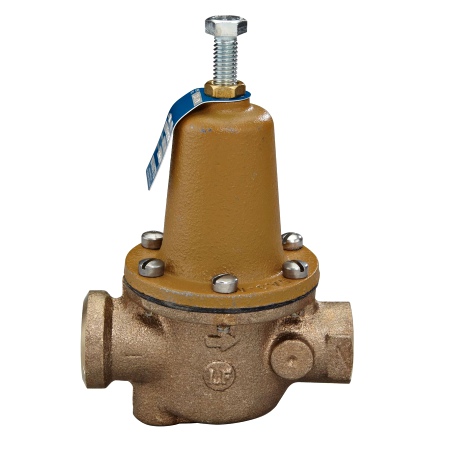

Watts Series LF123LP Water Pressure Reducing Valves
Series LF123LP Water Pressure Reducing Valves are designed to reduce incoming water pressure to a sensible level to protect plumbing system components and reduce water consumption. This series is suitable for water supply pressures up to 200psi (13.8 bar) and may be adjusted from 10 – 30psi (69 – 207 kPa). The standard setting is 30psi (207 kPa). All parts are quickly and easily serviceable without removing the valve from the line. The LF123LP features Lead Free* construction to comply with Lead Free* installation requirements.
Features:
| Connection Size | 3/4 inch |
|---|---|
| Temperature Range | 33˚F – 180˚F (0.5˚C – 82˚C) |
| Maximum Working Pressure | 200psi (13.8 bar) |
| Adjustable Reduced Pressure Range | 10 – 30psi (69 – 207 kPa |
| Standard Reduced Pressure Setting | 30psi (207 kPa) |
| Body Material | Cast Copper Silicon Alloy |
| Seat Material | Stainless Steel |
| Integral Strainer | Stainless Steel |
| Diaphragm Material | Reinforced EPDM |
| Valve Disc | EPDM |
