Watts Series LFH560 Mini Water Pressure Reducing Valves
Series LF560, LFH560 Mini Water Pressure Reducing Valves are designed to reduce incoming water pressure to a sensible level to protect plumbing system components and reduce water consumption. This series is ideal where a small economical package is required such as on special industrial process applications, miscellaneous plumbing applications and OEM equipment. Series LF560 and LFH560 are suitable for water supply pressures up to 300psi (21 bar). The LF560, LFH560 features Lead Free* construction to comply with Lead Free* installation requirements.

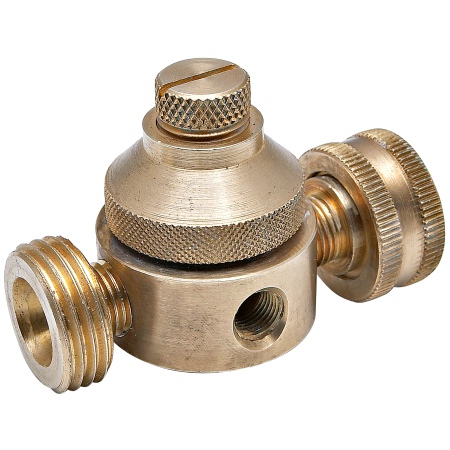

This 0121264 3/4 inch lead free mini water pressure regulator consists of a rugged lead free brass body, female hose inlet by male hose outlet threaded connections, plugged gauge port, Buna-N seat and diaphragm, oversized orifice, stainless steel stem and spring, and a heavy duty slotted and knurled adjusting screw. The adjustable reduced pressure range is 10 to 60 psi (0.68 to 4.13 bar) and is factory set at 40 psi (2.8 bar).
Features:
| Connection Size | 3/4 inch |
|---|---|
| Temperature Range | 33°F – 140°F (.6°C – 60°C) |
| Maximum Working Pressure | 150psi (10.3 bar) |
| Adjustable Reduced Pressure Range | 10 – 60psi (68.9 – 413.7 kPa) |
| Standard Reduced Pressure Setting | 40psi (276 kPa) |
| Body Material | Lead Free Brass |
| Seat Material | Buna-N |
| Diaphragm Material | Buna-N |
| Stem Material | Stainless Steel |
| Spring Material | Stainless Steel |
