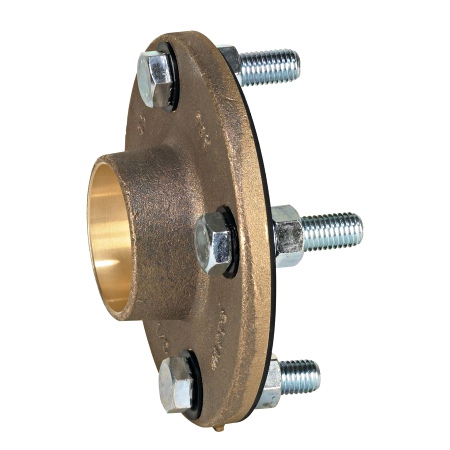

Watts Series LF3110 Dielectric Flanged Pipe Fittings

Series LF3110 Class 125 solder dielectric flanged pipe fitting features a Lead Free* cast copper silicon alloy construction. The LF3110 is a kit consisting of a flange, gasket, bolt insulators, nuts and bolts for installation. The LF3110 features Lead Free* construction to comply with Lead Free* installation requirements.

This 0121305 4 inch lead free class 125 dielectric flange pipe fitting is designed for commercial and residential applications such as the connections of piping of dissimilar metals on a hot water storage tank, water and air conditioners, processing tanks, steam, gas, and water piping to prevent accelerated corrosion and deterioration in the piping system due to galvanic and stray current. It is suitable for water, air, oil, natural gas, propane, gasoline, kerosene, mineral oil, vegetable oil, and alkaline. It consists of a single bronze body tailpiece with solder cast copper connection with a Buna-N gasket and hardware. The maximum temperature is rated up to 180 degrees F (82 degrees C). The maximum pressure is rated at 175 psi (12.1 bar).

FEATURES:
