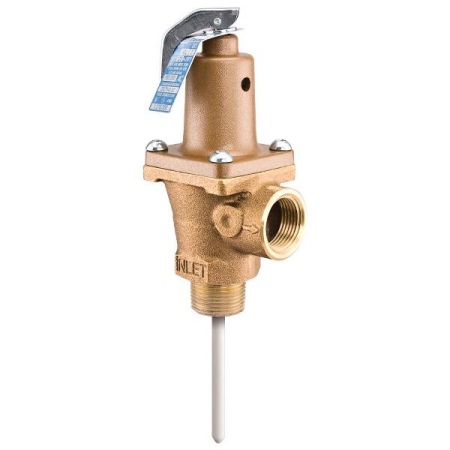

Watts Series LF40XL Automatic Reseating Temperature and Pressure Relief Valves
Series LF40XL Automatic Reseating Temperature and Pressure Relief Valves are used in commercial water heater applications to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters. They feature a Lead Free* brass body with NPT male inlet and NPT female outlet connections, unique thermostat with special thermo-bonded coating, tamper-resistant bonnet screws, automatic reseating feature, and test lever. Model LF40XL has an extension thermostat for installation in the hot water outlet within the allowable distance from the top of the tank. Series LF40L, LF40XL valves are ASME rated and CSA listed. Temperature Relief: 210°F (99°C), Pressure Range: 75 to 150psi (5.2 to 10.3 bar), Standard Pressure Settings: 75, 100, 125, or 150psi (5.27, 7.03, 8.79, or 10.55 bar).
Features:
| Connection Size | 3/4 inch |
|---|---|
| Temperature Relief | 210°F (99°C) |
| Pressure Range | 75 – 150psi (5.2 – 10.3 bar) |
| Pressure Relief Setting | 150psi |
| Body Material | Lead Free Brass |
| Inlet Connection Type | Male Threaded |
| Outlet Connection Type | Female Threaded |
Download Product Information:
Watts Series LF40XL Temperature and Pressure Relief Valves Technical Datasheet
