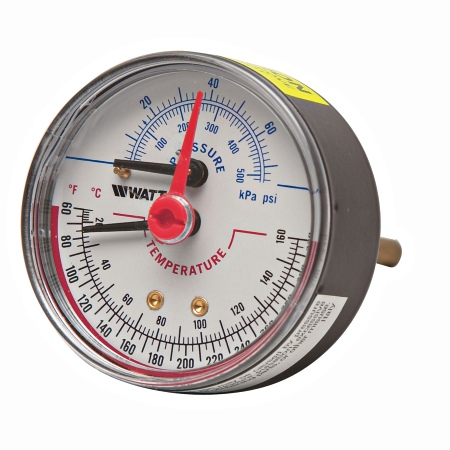

Watts Series LFDPTG-3 Combination Pressure and Temperature Gauges
Series LFDPTG-3 Combination Pressure and Temperature Gauges are used in commercial, residential, and institutional HVAC applications. These gauges are center back entry type models with black enamel steel cases, Kostil Polymer windows, 1/2" NPT connections, copper alloy Bourdon tube pressure elements, and bimetal spiral springs. The LFDPTG-3 features Lead Free* construction to comply with Lead Free* installation requirements. Accuracy is ASME, Type B. Series LFDPG-5 gauges are available in various pressure rating scales. The dual scale features PSI and kPa measurements.
This 0121660 gauge features a 3 inch dial with pressure rating scale from 0 to 50 psi and temperature range 60 to 320 degrees F.
FEATURES:
| Connection Size | 1/2 inch |
|---|---|
| Dial Size | 3 inch |
| Scale | 0 – 50psi 340 kPa |
| Working Temperature | 60°F – 320°F (20°C – 160°C) |
| Case Material | ABS Polymer |
| Window Material | Kostil polymer |
| Pressure Element | Copper alloy Bourdon tube |
| Temperature Element | Bimetal spiral spring |
| Welding Material | Tin Alloy |
| Connector Material | Lead Free Brass |
Download Product Information:
Watts Series LFDPTG-3 Combination Pressure & Temperature Gauges Datasheet
