Watts 0122565 Lead Free Dual Check Valve 1 1/4" x 1" LF7-10-U3

Watts 0122565 Lead Free Dual Check Valve 1 1/4" x 1" LF7-10-U3
Images for general purposes only. Actual may be different than depicted.
Watts 0122565 Lead Free Dual Check Valve 1 1/4" x 1" LF7-10-U3

Watts 0122565 Lead Free Dual Check Valve 1 1/4" x 1" LF7-10-U3

SKU: 0122565
Rating:
Quantity Price Stock
Usually Ships 1-2 Weeks
Usually Ships 1-2 Weeks
$615.95     /ea
Usually Ships 1-2 Weeks
0
$0.00
0
$0.00
0
0122565
Watts Series LF7 Lead Free Dual Check Valves

Series LF7 Dual Check Valves are designed for non-health hazard residential water system containment and continuous pressure applications, such as the drinking water supply service entrance or individual outlets. Series LF7 uses two compact replaceable check modules and is installed immediately downstream of the residential water meter. The LF7 features Lead Free* construction to comply with Lead Free* installation requirements.

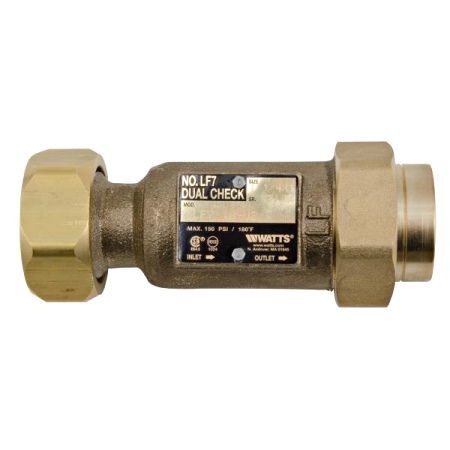

This 1 1/4 by 1 inch lead free dual check valve consists of a lead free bronze body with two plastic replaceable check valves, stainless steel springs, and 1 1/4 inch female meter thread swivel inlet by 1 inch NPT male threaded union outlet.

Features:

  • Can be installed vertically or horizontally
  • Available with combination of inlet/outlet sizes, types or thread and end connection including retrofit compression fittings and hose connections
  • Can be installed in many piping configurations and with a wide range of meter horns, copper setters and meter boxes
Inlet Connection Size 1 1/4 inch
Outlet Connection Size 1 inch
Temperature Range 33˚F – 180˚F (0.5˚C – 82˚C) continuous
Maximum Working Pressure 150psi (10.3 bar)
Minimum Working Pressure 10psi (69 kPa)
Thread Type NPT
Inlet Connection Type Swivel Joint
Outlet Connection Type Union Male Threaded
Body Material Lead Free Cast Copper Silicon Alloy
Springs Stainless Steel
