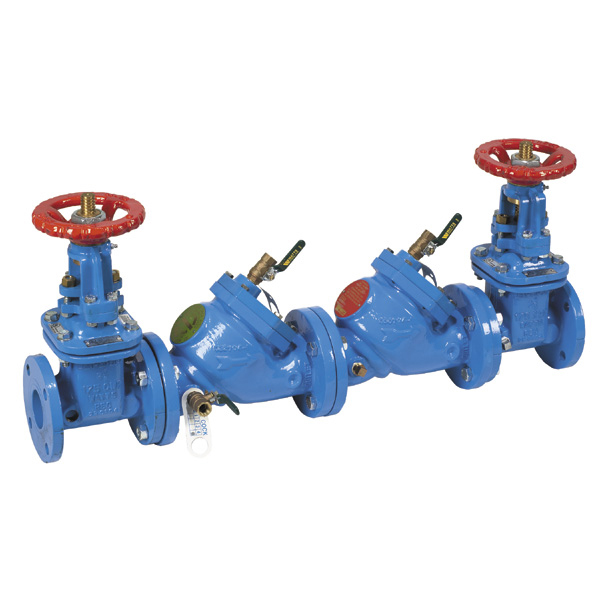

Watts 0122785 Lead Free Cast Iron Double Check Valve Assembly 2 1/2" (LF709-OSY)

Watts 0122785 Lead Free Cast Iron Double Check Valve Assembly 2 1/2" (LF709-OSY)
Images for general purposes only. Actual may be different than depicted.
Watts 0122785 Lead Free Cast Iron Double Check Valve Assembly 2 1/2" (LF709-OSY)

Watts 0122785 Lead Free Cast Iron Double Check Valve Assembly 2 1/2" (LF709-OSY)

SKU: 0122785
Rating:
Quantity Price Stock
Call for Availability
Call for Availability
$7,290.49     /ea
Call for Availability

Shipping Note

Ships by Truck (LTL)

0
$0.00
0
$0.00
0
0122785
Watts Series LF709 Lead Free Double Check Valve Assembly

Series LF709 Lead Free* Double Check Valve Assemblies prevent the reverse flow of polluted water from entering into the potable water supply. It has a modular check design for easy maintenance and epoxy coated (FDA approved) cast iron body construction. Series LF709 is ideal at referenced cross-connections identified in non-health hazard applications. The LF709 features Lead Free* construction to comply with Lead Free* installation requirements. Maximum Working Pressure: 175psi (12.06 bar).

The 0122785 lead free double check valve assembly is 2 1/2 inch in connection size, and doesn't consist of shutoff valves. It conists of UL/FM outside stem and yoke resilient seated gate valves.

Features:
  • Replaceable stainless steel seats
  • Maximum flow at low pressure drop
  • Design simplicity for easy maintenance
  • No special tools required for servicing
  • Captured spring assemblies for safety
  • Approved for vertical flow up installation
Temperature Range 33°F – 110°F (0.5°C – 43°C) continuous, 140°F (60°C) intermittent
Seat Material Stainless Steel
Check Valve Body Material Epoxy Coated Cast Iron
Maximum Working Pressure 175 PSI (12.1 bar)
Connection Size 2 1/2 inch
