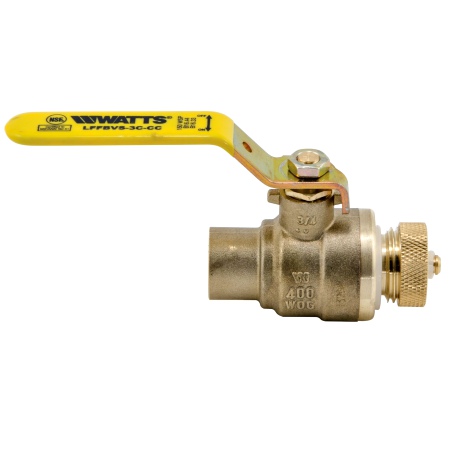

Watts 0123476 Full Port Ball Valve Cap And Chain 1/2" LFFBVS-3C-CC

Watts 0123476 Full Port Ball Valve Cap And Chain 1/2" LFFBVS-3C-CC
Images for general purposes only. Actual may be different than depicted.
Watts 0123476 Full Port Ball Valve Cap And Chain 1/2" LFFBVS-3C-CC

Watts 0123476 Full Port Ball Valve Cap And Chain 1/2" LFFBVS-3C-CC

SKU: 0123476
Rating:
Quantity Price Stock
Usually Ships 1-2 Weeks
Usually Ships 1-2 Weeks
$48.02     /ea
Usually Ships 1-2 Weeks
0
$0.00
0
$0.00
0
0123476
Watts Series LFFBV-3C-CC Lead Free Full Port Brass Ball Valves with 3/4" Hose End

Series LFFBV-3C-CC ball valves are used in commercial and industrial wash down applications which require a ¾" hose connection. These valves feature a bottom loaded blowoutproof stem, virgin PTFE seats, thrust washer and adjustable stem packing, chrome plated brass ball with brass cap and white polypropylene tether (chain). The LFFBV-3C-CC, LFFBVS-3CCC features Lead Free* construction to comply with Lead Free* installation requirements.

This 0123476 1/2 inch 2-piece Lead Free Full Port Threaded Ball Valve Cap And Chain is used in commercial and industrial applications for a full range of liquids and gases. The pressure rating is 600 psi WOG and 150 psi WSP.

Features:

  • Certified to NSF-61/G
  • 400psi (28 bar) WOG
  • Fluorocarbon elastomer stem O-ring
  • Adjustable stem packing gland
  • Virgin PTFE packing, thrust washer, and seat
Ball Material Chrome Plated Brass
Body Material Lead Free Copper Silicon Alloy Brass
Inlet/Outlet Connection Size 1/2 inch
Inlet/Outlet Connection Type Socket
Outlet Connection Type Male Threaded
Temperature Range -40ºF to 400ºF (-40ºC to 204ºC)
Pressure Rating 400psi (28 bar) WOG, non-shock
Seat/Stem Packing/Thrust Washer Material Virgin PTFE
