Watts Series LFBD-QT Quarter-Turn Boiler Drains

Series LFBD-QT quarter-turn boiler drains offer an innovative alternative to old-fashion multi-turn type boiler drains. These drains were developed to provide the speed and convenience of quarter-turn ball valve performance for boiler drain or sill cock applications. For added utility, the 1⁄2" model features a dual-pattern combination threaded and solder end by 3⁄4" hose connection. The 3⁄4" model is available in either solder or threaded ends. The LFBD-QT features Lead Free* construction to comply with Lead Free* installation requirements.

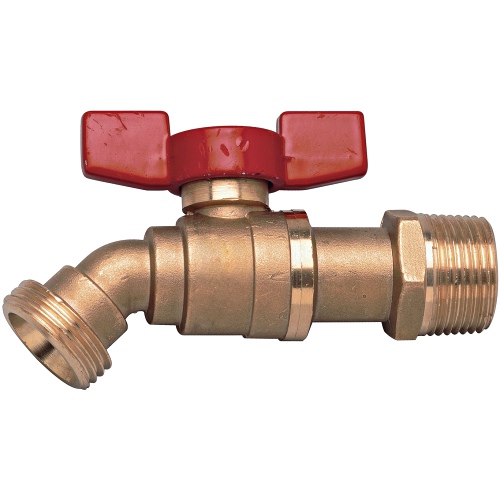

This 0123631 1/2 inch lead free angle pattern quarter turn boiler drain shutoff is designed for water service use in commercial and residential hydronic heating systems. It provides positive shutoff for boiler drain or sill cock applications. This shutoff consists of a lead free body construction with dual pattern combination threaded and solder and 3/4 inch hose thread connection, Teflon stem packing, and rugged aluminum tee handle. The maximum pressure is 200 PSI (14 BAR) WOG and maximum temperature is 180 degrees F (82 degrees C).

Features:

• Hose thread outlet
• Dual inlet connection
• Lead free construction
• Angle pattern
