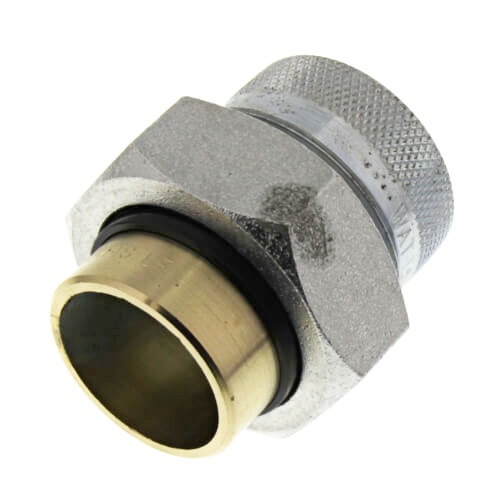

Watts 0124300 Lead Free Dielectric Union 1" (LF3001-GB)

Name: Watts 0124300 Lead Free Dielectric Union 1" (LF3001-GB)
Brand: Watts
SKU: 0124300
Price: 101.14 USD
Availability: OutOfStock

Images for general purposes only. Actual may be different than depicted.

Watts 0124300 Lead Free Dielectric Union 1" (LF3001-GB)

SKU: 0124300

Brand:

Rating:

Quantity	Price	Stock
Usually Ships 1-2 Weeks Usually Ships 1-2 Weeks	$101.14 /ea	Usually Ships 1-2 Weeks

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

Watts Series LF3001A Dielectric Unions

Series LF3001A Lead Free* Dielectric Unions are used in commercial and residential applications to prevent accelerated corrosion and deterioration in the piping system due to galvanic and stray current. It is installed between pipes made from dissimilar metals, and features a female iron pipe thread to solder connection. It consists of a union nut, two tailpieces, and a gasket that separates the tailpieces to prevent an electric current from occurring. Series LF3001A is ideal in applications such as hot water storage tanks, water and air conditioners, processing tanks, steam, gas, and water piping. Maximum Pressure: 250psi.

Features:

Female iron pipe thread to solder connection
Designed and manufactured to the highest quality standards
Individually factory certified to withstand a minimum of 600 volts on a dry line with no flashover
Rated to 180°F (82°C) at 250psi (17.2 bar) with standard gasket A and 300ºF (149ºC) at 50psi (3.4 bar) with optional gasket B

Size	1 inch
Maximum Working Temperature	300Â°F
Maximum Working Pressure	50 PSI
Gasket Material	EPDM
Tail Piece Material	Lead Free Brass
Adapter Material	Steel
Insulator Material	Polysulfone

Download Product Information:

Watts Series LF3001A Lead Free Dielectric Union Technical Datasheet
