Series LF26A, LF263A Small Pressure Regulators are general purpose pressure regulators for water service. The LF26A, LF263A features Lead Free* construction to comply with Lead Free* installation requirements. These regulators are ideal for use in beverage dispensers, ice cube machines and other similar applications. Lead Free* small pressure regulators shall comply with state codes and standards, where applicable, requiring reduced lead content.

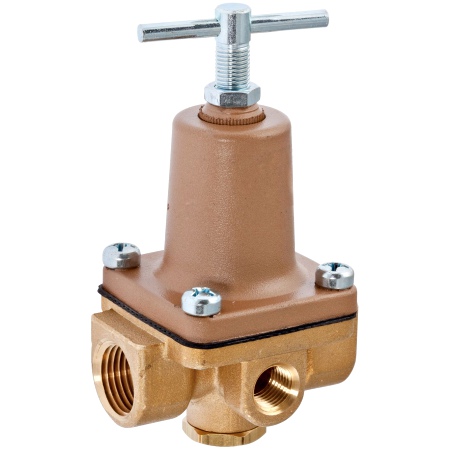

This 0125347 1/2 inch lead free brass small water pressure regulator is used in small general purpose applications to regulate water pressure in piping systems using water and No. 2 fuel oil. It consists of a brass body with an adjusting tee handle, NPT threaded female connections, three way low-water pressure gauge port with gauge, aluminum spring cage, Buna-N stainless steel disc, and a reinforced Buna-N diaphragm. The temperature range is 0 to 140 degrees F (-18 to 60 degrees C). The reduced water pressure range is 1 to 25 psi (0.1 to 1.7 bar) and the water pressure is set at 10 psi (0.7 bar).
Features:
| Connection Size | 1/2 inch |
|---|---|
| Temperature Range | 0°F – 140°F (-18°C – 60°C) |
| Maximum Working Pressure | 300psi (21 bar) |
| Adjustable Reduced Pressure Range | 1-25 psi (0.1 – 1.7 bar) |
| Body Material | Lead Free Brass |
| Spring Cage Material | Aluminum |
| Disc Material | Buna-N stainless steel |
| Diaphragm Material | Reinforced Buna-N |
| Valve Style | 3-Way |
Download Product Information:
Watts Series LF263A Small Pressure Regulators Technical Datasheet
