Watts Series LF223 High Capacity Water Pressure Reducing Valves

Series LF223, LF223S Lead Free* High Capacity Water Pressure Reducing Valves are used in commercial, industrial, and institutional applications to reduce incoming water pressure for protection of plumbing system components and to reduce water consumption. It consists of a Lead Free* brass body construction (2 1/2 in. is iron), enlarged diaphragm, spring cage and seat orifice for super capacity, sealed spring cage for waterworks pit installations and an optional thermal expansion bypass. Available with NPT threaded female inlet and NPT female threaded outlet with (LF223-S) or without (LF223) strainer. Maximum Working Pressure: 300psi (21 bar), Adjustable Reduced Pressure Range: 25 to 75psi (172 to 517 kPa), Standard Pressure Setting: 50psi (345 kPa).

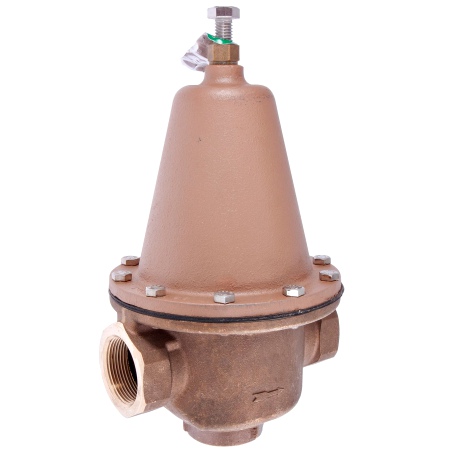

This 0298591 2 inch Lead Free Brass High Capacity Water Pressure Reducing Valve is with NPT threaded female inlet x NPT threaded female outlet and High Pressure Reduced Pressure Range of 50-95 psi (3.4-6.6 bar).

Features:


• Enlarged diaphragm, spring cage and seat orifice for super capacity performance
• Lead Free* brass body construction (except 21⁄2" which is iron)
• Serviceable in line
• Series LF223S furnished with separate strainer
• Optional bypass feature controls thermal expansion pressure
• Sealed spring cage on all models for accessible outdoor or pit installations.
