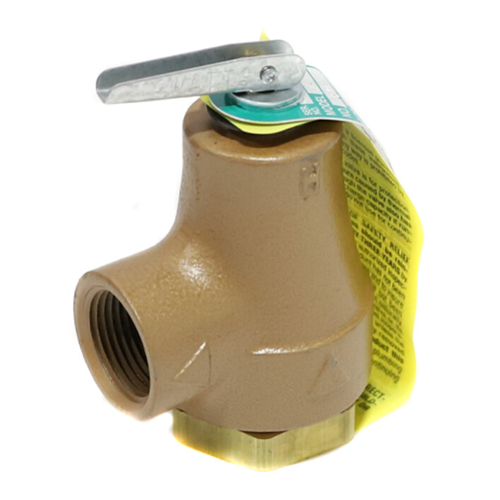

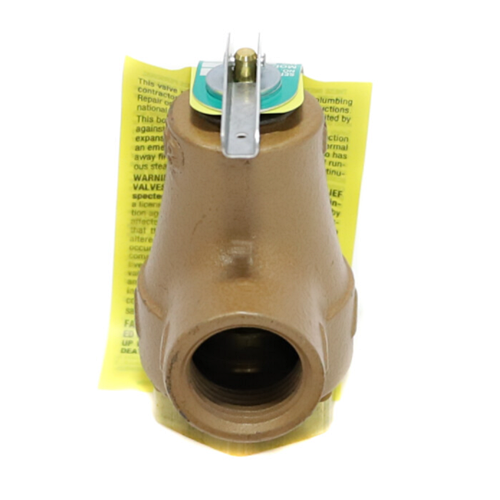

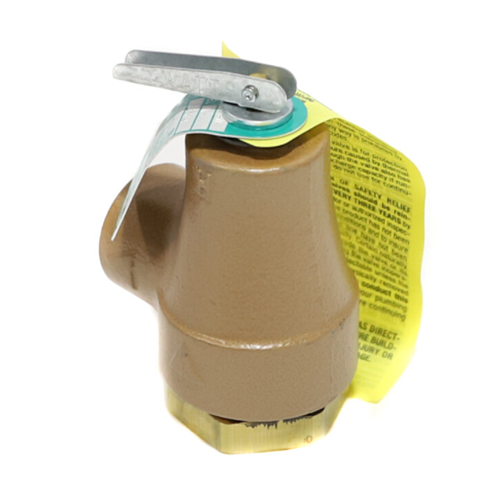

Watts 0358550 Relief Valve 3/4" 374A-045

Watts 0358550 Relief Valve 3/4" 374A-045
Images for general purposes only. Actual may be different than depicted.
Watts 0358550 Relief Valve 3/4" 374A-045 Watts 0358550 Pressure Relief Valve 45 PSI Watts 0358550 Iron Boiler Pressure Relief Valve

Watts 0358550 Relief Valve 3/4" 374A-045

SKU: 0358550
UPC: 098268560923
Rating: (1)
Quantity Price Stock
Usually Ships 1 Week
Usually Ships 1 Week
$213.94     /ea
Usually Ships 1 Week
0
$0.00
0
$0.00
0
0358550
The Watts 0358550 is a Relief Valve that has an inlet and outlet size of 3/4".  The valve is rated to flow at a maximum working pressure of 10 psi.  Both inlet and outlet connection is female threaded.

The 0358550 is designed to be robust that can resist corrosive water conditions, sticking and freezing during cold temperatures, and prevents sediment accumulation in the seat.  This valve is applicable in hot water boilers as an emergency safety relief.  It protects your water heating boiler equipment from excessive pressure.  Do not use this valve as an operating control and on coal or wood boilers.

This model is identical to 374A-045.






Inlet/Outlet Connection Type Female Threaded
Inlet/Outlet Connection Size 3/4 Inch
Body Material Iron
Pressure Relief Setting 45 PSI
Pressure Steam Discharge Capacity 734,000 BTU per hour
Maximum Temperature 250F
Maximum Working Pressure 10 PSI
Inlet/Outlet Thread Type NPT

By Dana

from

Yes, I would recommend this product to a friend or co-worker

5.0 Relief valve

Quick ship,easy install,fair price
