Watts 0548008 Full Port Carbon Steel Ball Valve 2-1/2" (C-FBV-1)

Name: Watts 0548008 Full Port Carbon Steel Ball Valve 2-1/2" (C-FBV-1)
Brand: Watts
SKU: 0548008
Price: 1882.16 USD
Availability: OutOfStock

Images for general purposes only. Actual may be different than depicted.

Watts 0548008 Full Port Carbon Steel Ball Valve 2-1/2" (C-FBV-1)

SKU: 0548008

Brand:

Rating:

Quantity	Price	Stock
Usually Ships 1-2 Weeks Usually Ships 1-2 Weeks	$1,882.16 /ea	Usually Ships 1-2 Weeks

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

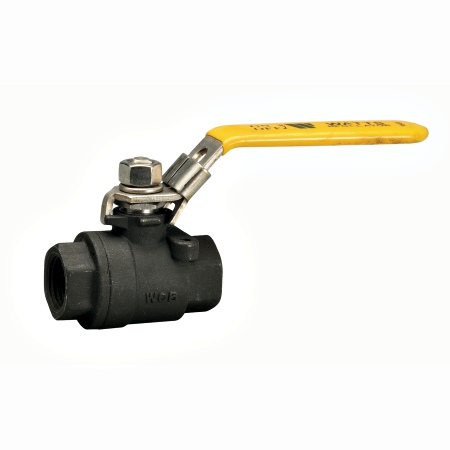

Watts Series C-FBV-1 Full Port Carbon Steel Ball Valves

Series C-FBV-1 2-Piece, Full Port, Carbon Steel Ball Valves are suitable for a full range of liquids and gases. The C-FBV-1’s full port orifice ensures maximum flow capacity, while reinforced PTFE seats, PTFE stem packing, thrust washer and body seal provide maximum safety and high operating pressure/temperature limits.

This 0548008 2 1/2 inch two-piece full port ball valve with female threaded end connections is used in commercial and industrial applications with high operating temperature and pressure limits. The valve features carbon steel body construction, adjustable packing gland, reinforced PTFE seats and seals, a bottom loaded blowout proof stem, and a vinyl insulator on a heavy duty 304 Latch-Lok stainless steel handle. The temperature range is 0 to 400 degrees F (-18 to 204 degrees C). The pressure rating is 1000 psi (68.9 bar) WOG non-shock and 125 psi (8.6 bar) WSP.

Features:

Full port design
Pressure rated at 1000psi (70 bar) WOG non-shock and 125psi (8.6 bar) WSP •
Adjustable stem packing
Bottom loaded, blowout proof stem
Drilled and tapped mounting pads
PTFE stem packing, thrust washer and body seal
Reinforced PTFE seat
Vinyl insulator on heavy duty 304SS handles
Low operating torque
Each valve factory tested
Standard Latch-Lok handle to lock in open or close position
Conforms to MSS-SP-110 and API-598

Ball Material	304 Stainless Steel
Body Material	Carbon Steel
Inlet/Outlet Connection Size	2 1/2 in
Inlet/Outlet Connection Type	Female Threaded
Inlet Thread Type	NPT
Outlet Thread Type	FPT
Temperature Range	0Â°F - 400Â°F (-18Â°C â€“ 204Â°C)
Maximum Working Pressure	1000psi (70 bar) WOG non-shock; 125psi (8.6 bar) WSP
CV Rating	440
Stem Packing/Thrust Washer Material	PTFE

Download Product Information:

Watts Series C-FBV-1 Full Port Carbon Steel Ball Valves Datasheet
