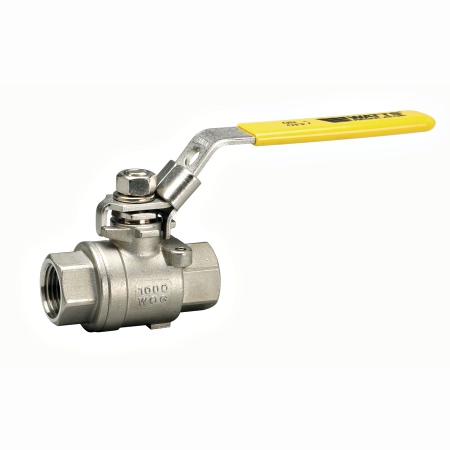

Watts 0548014 Full Port Stainless Steel Ball Valve 1" S-FBV-1

Watts 0548014 Full Port Stainless Steel Ball Valve 1" S-FBV-1
Images for general purposes only. Actual may be different than depicted.
Watts 0548014 Full Port Stainless Steel Ball Valve 1" S-FBV-1

Watts 0548014 Full Port Stainless Steel Ball Valve 1" S-FBV-1

SKU: 0548014
Free Shipping over $199
Rating:
Quantity Price Stock
Usually Ships 1 Week
Usually Ships 1 Week
$433.29     /ea
Usually Ships 1 Week
Add to Cart
Add to Wishlist
Add to Cart
Add to Wishlist
0
$0.00
0
$0.00
0
0548014
Watts Series S-FBV-1 Full Port Stainless Steel Ball Valves

Series S-FBV-1 2-Piece, Full Port, Stainless Steel Ball Valves are suitable for a full range of liquids and gases. The S-FBV-1’s full port orifice ensures maximum flow capacity, while reinforced PTFE seats, PTFE stem packing, thrust washer and body seal provide maximum safety and high operating pressure/temperature limits.

This 0548014 1 inch two-piece full port ball valve with female threaded end connections is used in commercial and industrial applications with high operating temperature and pressure limits. The valve features stainless steel body construction, adjustable packing gland, reinforced PTFE seats and seals, a bottom loaded blowout proof stem a vinyl insulator on a heavy duty 304 Latch-Lok stainless steel handle. The temperature range is 0 to 400 degrees F (-18 to 204 degrees C). The pressure rating is 1000 psi (68.9 bar) WOG non-shock and 125 psi (8.6 bar) WSP.

Features:

  • Pressure rated at 1000psi (69 bar) WOG non-shock and 125psi (8.6 bar) WSP
  • Adjustable stem packing
  • Bottom loaded, blowout proof stem
  • Drilled and tapped mounting pads
  • Standard Latch-Lok handle to lock in open or close position
  • PTFE stem packing, thrust washer and body seal
  • Reinforced PTFE seat
  • Vinyl insulator on heavy duty 304SS handles
  • Low operating torque
  • Each valve factory tested
  • Conforms to MSS-SP-110 and API-598
Material Stainless Steel
Control Type Lever Handle
CV Rating 64
Operating Torque 102
Inlet/Outlet Connection Size 1 inch
Inlet/Outlet Connection Type Female Threaded
Inlet Thread Type NPT
Outlet Thread Type FPT
Temperature Range 0˚F - 400˚F (-18˚C – 204˚C)
Maximum Working Pressure 1000psi (69 bar) WOG non-shock; 125psi (8.6 bar) WSP
