Watts Series LFFBV-3C Lead Free Full Port Brass Ball Valve

Series LFFBV-3C 2-piece, full port, Lead Free* ball valves are used in commercial and industrial applications for a full range of liquids and gases. They feature a bottom-loaded blowout proof stem, virgin PTFE seats, thrust washer, and adjustable stem packing gland, stem packing nut, chrome plated Lead Free* brass ball, copper silicon alloy brass adapter, and steel handle. The Series LFFBV-3C, LFFBVS-3C features Lead Free* construction to comply with Lead Free* installation requirements.

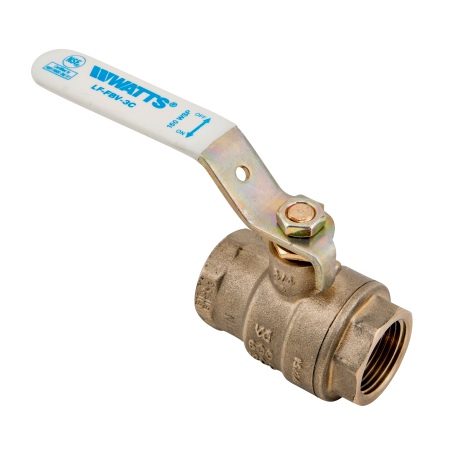

This 0555107 2 inch two-piece full port ball valve features a lead free brass body and adapter, female threaded end connections, adjustable packing gland, chrome plated lead free brass ball, virgin PTFE seats and seals, a bottom loaded blowout proof stem, and steel handle. The temperature range is minus 40 to 400 degrees F (minus 40 to 204 degrees C) and the pressure rating is 600 psi (41 bar) WOG non-shock and 150 psi (10.3 bar) WSP

Features:

• Lead Free* forged copper silicon alloy body and adapter
• Certified to NSF/ANSI standard 61/8
• CSA approved threaded valves only 1⁄4" – 3"
• UL/FM approved threaded valves 1⁄4" – 2"
• FM approved solder valves 1⁄2" – 2"
• UL Listed solder valves 1⁄2" – 2"
• Fluorocarbon elastomer stem O-ring prevents stem leaks
• Adjustable stem packing gland • PTFE stem packing seal, thrust washer, and seats
• Bottom loaded blowout proof stem
• Machined chrome plated Lead Free* brass ball
• Valves comply to MSS-SP-110 standard
