Watts Series LFFBVS-4 Full Port Brass Ball Valves

Series LFFBV-4, LFFBVS-4 2-Piece, Full Port, Brass Ball Valves are suitable for a full range of liquids and gases in residential and commercial applications. These valves feature an adjustable packing for longer service life, a bottom loaded blow-out proof stem for safety, a fluorocarbon elastomer stem O-ring to prevent stem leaking at installation, and are rated to 600psi WOG/150psi WSP 1⁄4"–2" and 400psi WOG/125psi WSP 21⁄2"–3". The LFFBV-4, LFFBVS-4 features Lead Free* construction to comply with Lead Free* installation requirements.

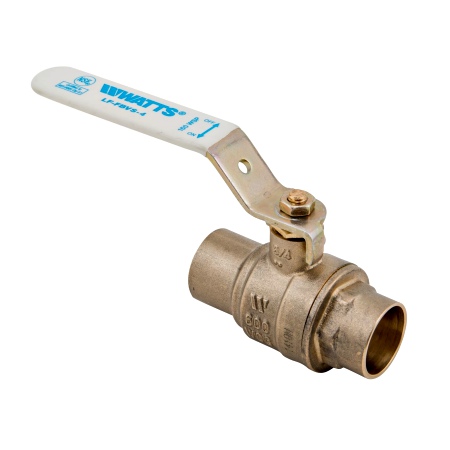

This 0555131 1 1/4 inch 2-piece full port lead free ball valve features a lead free brass body with solder end connections, bottom-loaded blowout-proof stem, virgin PTFE seat, thrust washer, and adjustable stem packing seal, chrome plated lead free brass ball, lead free brass adapter and steel handle.

Features:


• CSA approved threaded valves only ¼" – 3"
• Certified to NSF/ANSI Standard 61/8
• Metal-to-metal adapter body seal to eliminate adapter leaks after soldering
• Fluorocarbon elastomer stem O-ring prevents stem leaks
• Adjustable stem packing gland provides longer service life
• Bottom loaded blowout proof stem
• PTFE stem packing seal and seats
• Machined chrome-plated Lead Free brass ball
• Complies with MSS-SP-110
