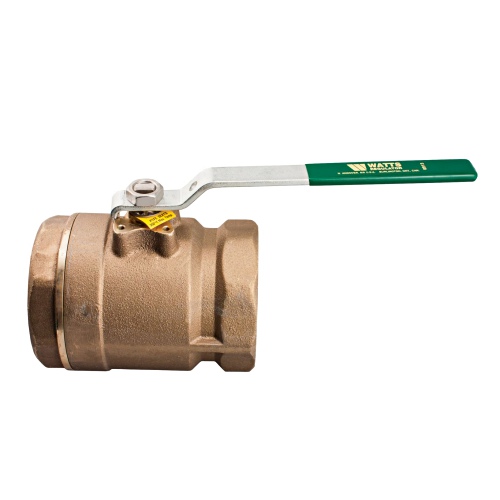

Watts 0555193 Standard Port Ball Valve LFB6000 3"

Name: Watts 0555193 Standard Port Ball Valve LFB6000 3"
Brand: Watts
SKU: 0555193
Price: 1352.77 USD
Availability: OutOfStock

Images for general purposes only. Actual may be different than depicted.

Watts 0555193 Standard Port Ball Valve LFB6000 3"

SKU: 0555193

Brand:

Rating:

Quantity	Price	Stock
Usually Ships 1-2 Weeks Usually Ships 1-2 Weeks	$1,352.77 /ea	Usually Ships 1-2 Weeks

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

Watts Series LFB6000 Standard Port Ball Valves

The Watts Series LFB6000 2-Piece, Standard Port Lead Free Ball Valves feature a blowout proof pressure retaining 316 stainless steel stem. The LFB6000’s standard port orifice ensures minimal pressure drop, while Durafill® and Uniseal® seats and 316 stainless steel ball provide lasting service for a wide range of liquids and gases. The Series LFB6000 feature Lead Free construction to comply with Lead Free installation requirements.

This 0555193 lead free two-piece standard port ball valve with female threaded end connections is used in commercial and industrial applications for potable water applications. The durable seats provide tighter torque and more abrasion resistance for longer lasting service. This valve is individually tested, air under water, both open and closed. The temperature range is 0 to 450 degrees F (-18 to 232 degrees C) at 50 PSI (344.7 kPa). The pressure rating is 600 PSI (41.4 BAR) WOG non-shock and 150 PSI (10.3 BAR) WSP.

Features:

Lead Free copper silicon alloy body and adapter
316 stainless steel ball & stem
Durafill® (carbon/glass filled PTFE) seats for sizes 1⁄4" – 1⁄2" and 11⁄4" – 4"and Uniseal® (enhanced PTFE) seats for sizes 3⁄4" & 1" for lasting service for a wide range of liquids and gases
Blowout proof, pressure retaining 316 stainless steel stem
1/4" – 3" pressure rated at 600psi (41 bar) WOG non-shock; 150psi (10 bar) WSP
High cycle life reinforced PTFE stem packing seal and thrust washer
Vinyl insulator on heavy duty, zinc-plated, carbon steel handles
Quarter-turn open or close operation
Low operating torque
Adjustable stem packing gland

Ball Material	Chrome Plated Brass
Body Material	Bronze
CV Rating	400
Inlet/Outlet Connection Size	3 IN
Inlet/Outlet Connection Type	Female Threaded
Inlet Thread Type	NPT
Outlet Thread Type	FPT
Stem Packing/Thrust Washer Material	Glass Reinforced PTFE
Temperature Range	0Â°F â€“ 450Â°F (-18Â°C â€“ 232Â°C) @ 50psi (3.4 bar)
Pressure Rating	600psi (41 bar) WOG non-shock; 150psi (10 bar) WSP

Download Product Information:

Watts Series LFB6001 Standard Port Ball Valve Technical Datasheet
