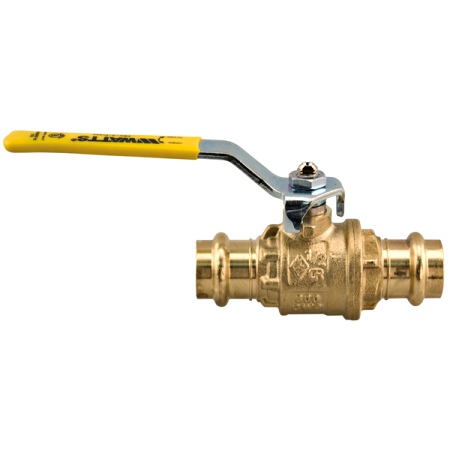

Watts 0555301 LFFBV-3-PRESS-M1 Full Port Ball Valve 1 1/4

Watts 0555301 LFFBV-3-PRESS-M1 Full Port Ball Valve 1 1/4
Images for general purposes only. Actual may be different than depicted.
Watts 0555301 LFFBV-3-PRESS-M1 Full Port Ball Valve 1 1/4

Watts 0555301 LFFBV-3-PRESS-M1 Full Port Ball Valve 1 1/4

SKU: 0555301
Rating:
Quantity Price Stock
Usually Ships 1-2 Weeks
Usually Ships 1-2 Weeks
$146.85     /ea
Usually Ships 1-2 Weeks
Add to Cart
Add to Wishlist
Add to Cart
Add to Wishlist
0
$0.00
0
$0.00
0
0555301
Watts Series LFFBV-3-Press-M1 Lead Free Full Port Brass Ball Valves with Integral Press Fitting End Connection

The Series LFFBV-3-Press-M1 features Lead Free* construction to comply with low lead installation requirements. Designed for use in ProPress® Piping Systems Sizes: 1⁄2" – 2".

This 0555301 1 1/4 inch lead free two-piece, full port, ball valve with integral press fitting ends is designed for use in ProPress(R) piping systems. It features a lead free brass body, adjustable packing gland and bottom-loaded blowout proof stem with a stem O-ring seal. It is made with integral ASTM-B88 compliant press end connections that are designed for types K, L and M hard copper tubing 1/2 to 2 inches (15 to 50 MM) and soft copper tubing 1/2 to 1 1/4 inches (15 to 32 MM). The press fitting is rated to 200 psi CWP and up to 250 degrees F (13.4 bar to 121 degrees C).

Features:

  • Lead Free* brass body
  • Tested and Certified to NSF/ANSI 61 Annex G 1⁄2" – 2"
  • UL Listed • Designed for types K, L, and M hard copper tubing 1⁄2" - 2" and soft copper tubing 1⁄2" – 11⁄4"
  • Press end connections comply to ASTM-B88
  • Press connection rated to 200psi CWP up to 250°F (13.8 bar to 121°C)
  • Triple reinforced stem seal design
  • Bottom loaded, blowout proof stem with stem O-ring seal
  • PTFE seats, seals and thrust washers
Material Brass
Inlet/Outlet Connection Size 1 1/4 inch
Inlet/Outlet Connection Type Press
Minimum Temperature 32° F
Maximum Temperature 250° F
WOG Rating 200 psi
Seat/Stem Packing/Thrust Washer Material Virgin PTFE
