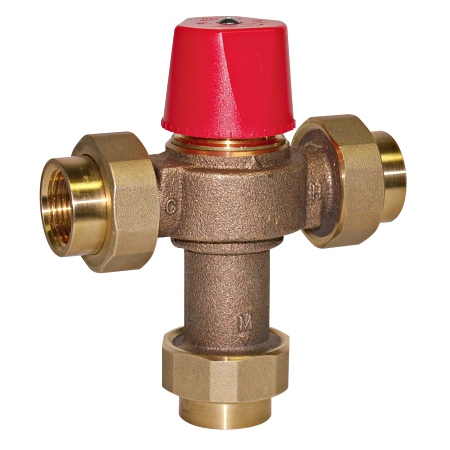

The Watts 0559160 ( LFL1170M2-UT) is a lead-free hot water temperature control valve. This 1" size NPT valve can be set or adjusted between 60°F – 120°F (16°C – 49°C) with a 0.5 to 23 GPM flow rate. The maximum working pressure is up to 150 psi and has a minimum static pressure of 30 psi.

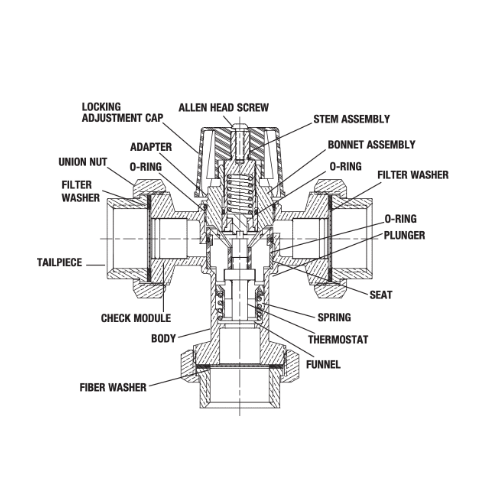

The LFL1170M2 series are constructed to be lead-free in compliance with installation requirements and to avoid lead contamination that can harm or cause health problems. The valve is used on hot water supply systems especially for mixing hot and cold water. Hot and Cold water flow can be easily regulated with the “double throttling” design of the valve. Also, a cross-flow is prevented within the valve for it consists of integral check valves and filter washers.
Suitable for radiant heat applications and on applications that need to reduce hot water temperature.
| Connection Size | 1 inch |
|---|---|
| Cold Inlet Temperature Range | 40 to 85 degree F |
| Hot Inlet Temperature Range | 120 to 200 degree F |
| Capacity | 23 GPM at 45PSI |
| Field Adjustable Range | 60 to 120 degree F |
| Maximum Pressure Differential | 25% |
| Flow Rate Range | 0.5 to 23 GPM |
| Maximum Temperature | 200°F (93°C) |
| Maximum Pressure | 150psi (10.3 bar) |
| Body Material | Lead Free Copper Silicon Alloy |
