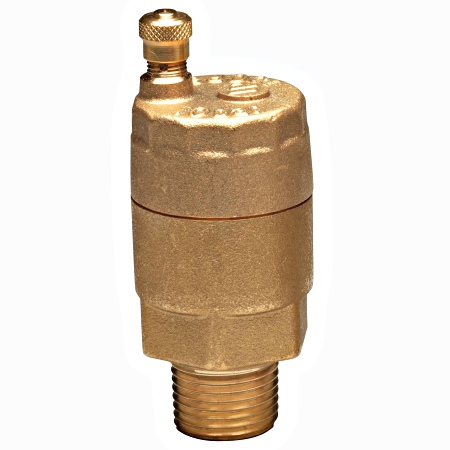

Watts 0590722 Air Vent 1/2" FV-4M1 150#Max

Name: Watts 0590722 Air Vent 1/2" FV-4M1 150#Max
Brand: Watts
SKU: 0590722
Price: 63.10 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Watts 0590722 Air Vent 1/2" FV-4M1 150#Max

SKU: 0590722

Brand:

Rating:

Quantity	Price	Stock
10 Usually Ships 1 Week	$63.10 /ea	10

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

Watts Series FV-4M1 Automatic Air Vent Valves

Series FV-4M1 Automatic Air Vent Valves provide automatic air venting for hot or cold water distribution systems. These vents purge air that may be in the water system. The vent valve utilizes a float to actuate the valve plug which is located at the top of the valve. Once the air is displaced and the system pressure is sustained, the valve plug seals and prevents any water from escaping from the system. The float vent can also operate as an anti-vacuum device since it will permit air to enter the system when it must be drained. It can also be installed to permit the separation and dispersal of air while fluid is actually circulating in the system.

FEATURES:

Body and cover are brass construction
Air vent with silicone rubber seal
Impurities do not usually affect function as maximum float line of water is always lower than the valve seal
Float is high temperature resistant polyethylene
Suitable for use with glycol systems
Can be disassembled for inspection and cleaning

Bottom Tapping Size	1/2 inch
Minimum Working Pressure	1.45psi (10 kPa)
Maximum Working Pressure	150psi (10 bar)
Temperature Range	33ËšF â€“ 240ËšF (5ËšC â€“ 116ËšC)
Body & Cover Material	Brass

Download Product Information:

Watts Series FV-4M1 Automatic Air Vent Valves Technical Datasheet
