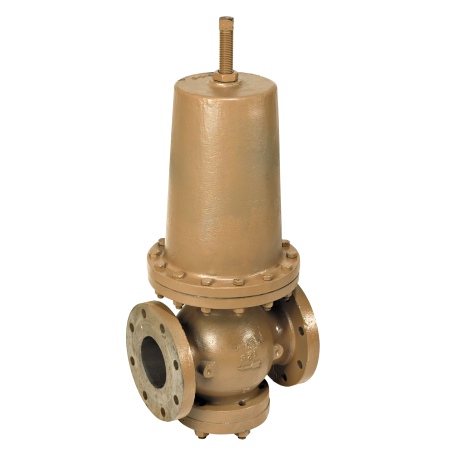

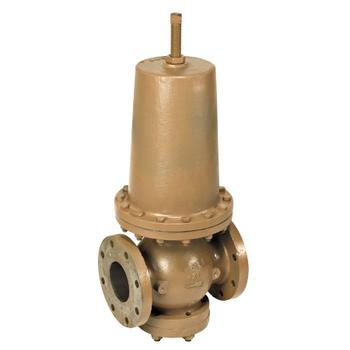

Watts 0681040 Direct Operated Water Pressure Reducing Valve 3" 2300

Name: Watts 0681040 Direct Operated Water Pressure Reducing Valve 3" 2300
Brand: Watts
SKU: 0681040
Price: 34969.85 USD
Availability: OutOfStock

Images for general purposes only. Actual may be different than depicted.

Watts 0681040 Direct Operated Water Pressure Reducing Valve 3" 2300

SKU: 0681040

Brand:

Rating:

Quantity	Price	Stock
Usually Ships 1 Week Usually Ships 1 Week	$34,969.85 /ea	Usually Ships 1 Week

Add to Cart

Add to Wishlist

This product is Non-Cancelable-Non-Returnable - Check below to Acknowledge*

I understand this product is non-cancel/non-returnable

Add to Cart

Add to Wishlist

This product is Non-Cancelable-Non-Returnable - Check below to Acknowledge

I understand this product is non-cancel/non-returnable

Watts Series 2300 Direct Operated Water Pressure Reducing Valves

Series 2300 Direct Operated Water Pressure Reducing Valves are designed for dead-end water service where the flow is intermittent and changes rapidly, as on domestic water system. This Series is also installed to regulate the flow of water to such fast acting equipment as flushometers and snap cocks. The Series 2300 is recommended where city water pressure is to be reduced to supply plumbing fixtures to prevent violent pressure fluctuations. The 2300 features Lead Free* construction to comply with Lead Free* installation requirements.

Features:

An essentially balanced single seat minimizes variation in delivery pressure resulting from varying inlet pressure
A large Hycar diaphragm ensures a sensitive response to the slightest changes in reduced pressure
Packless design eliminates stuffing box friction
Hycar composition single seat provides for dead-end shutoff and prevents pressure-creep when no flow is required
Self-aligning design. Eliminates the need for a stem guide in the bottom flanges and removes a point of direct collection that can cause faulty operation
Disc and piston are located to minimize the possibility of obstruction by dirt
Large pressure plate gives ample support to the diaphragm – assuring long life
Self-contained design, requires no control lines
All internal parts accessible by removing blind flange or spring chamber. Regular maintenance can be performed with the valve body in line
No stuffing box maintenance required

Connection Size	3 inch
Maximum Temperature	150Â°F (66Â°C)
Maximum Pressure	200psi (13.8 bar)
Reduced Pressure Range	30 â€“ 80psi (207 â€“ 552 kPa)
Body Material	Cast Iron
Disc Material	Hycar Composition
Trim	Stainless Steel
Diaphragm	Hycar
Spring	Tempered Steel

Download Product Information:

Watts Series 2300 Direct Operated Water Pressure Reducing Valves Datasheet

Watts Series 2300 Direct Operated Water Pressure Reducing Valves Instructions
