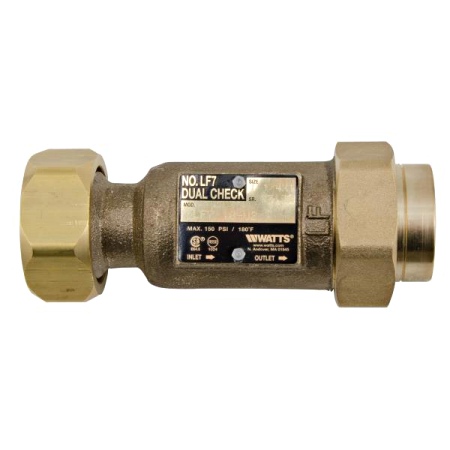

Watts 0792066 Lead Free Dual Check Valve 1 1/4" x 1" LF7 10-U2

Watts 0792066 Lead Free Dual Check Valve 1 1/4" x 1" LF7 10-U2
Images for general purposes only. Actual may be different than depicted.
Watts 0792066 Lead Free Dual Check Valve 1 1/4" x 1" LF7 10-U2

Watts 0792066 Lead Free Dual Check Valve 1 1/4" x 1" LF7 10-U2

SKU: 0792066
Rating:
Quantity Price Stock
Usually Ships 1-2 Weeks
Usually Ships 1-2 Weeks
$312.20     /ea
Usually Ships 1-2 Weeks
0
$0.00
0
$0.00
0
0792066
Watts Series LF7 Lead Free Dual Check Valves

Series LF7 Dual Check Valves are designed for non-health hazard residential water system containment and continuous pressure applications, such as the drinking water supply service entrance or individual outlets. Series LF7 uses two compact replaceable check modules and is installed immediately downstream of the residential water meter. The LF7 features Lead Free* construction to comply with Lead Free* installation requirements.

This 0792066 1 1/4 by 1 inch dual check valve consists of a lead free bronze body with two plastic replaceable check valves, stainless steel springs, and 1 1/4 inch female meter thread swivel inlet by 1 inch NPT female threaded union outlet.

Features:

  • Can be installed vertically or horizontally
  • Available with combination of inlet/outlet sizes, types or thread and end connection including retrofit compression fittings and hose connections
  • Can be installed in many piping configurations and with a wide range of meter horns, copper setters and meter boxes
Inlet Connection Size 1 1/4 inch
Outlet Connection Size 1 inch
Temperature Range 33˚F – 180˚F (0.5˚C – 82˚C) continuous
Maximum Working Pressure 150psi (10.3 bar)
Minimum Working Pressure 10psi (69 kPa)
Inlet Connection Type Swivel Joint
Outlet Connection Type Female Threaded
Body Material Lead Free Cast Copper Silicon Alloy
Springs Stainless Steel
Seals Buna-N
