Watts Series G4000M1 Full Port Cast Iron Flanged Ball Valves

Series G4000 and G4000M1 2-Piece, Full Port, Cast Iron Flanged Ball Valves feature a stainless steel ball and stem with 200psi (14 bar) CWP and 125psi (9 bar) WSP rating. These valves are ideal to replace old cast iron gate valves. The G4000M1 features reliable quarter-turn ball valve technology and the G4000 features a manual gear operator for positive shut-off.

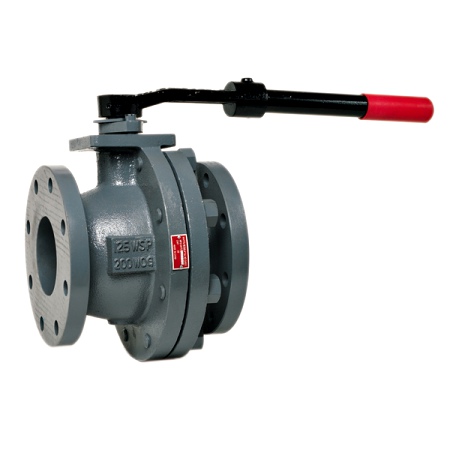

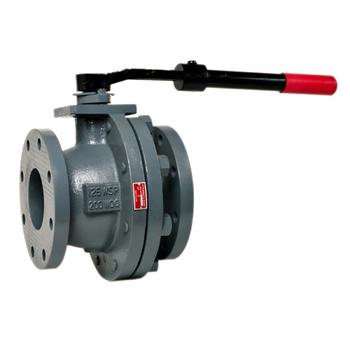

This 0822651 2-Piece Full Port Cast Iron Flanged Ball Valve, 2 1/2 IN Watts Model G4000M1, is used in commercial HVAC and steam applications. It features a 125 psi steam rating, stainless steel ball and stem, PTFE seat and packing, a steel-plated stop plate, and a ductile iron handle. It has a quarter turn operation, positive shutoff, and is ideal in replacing old cast iron gate valves. Repair Kits are 0830006, 0830001 and 0835501.

Features:
