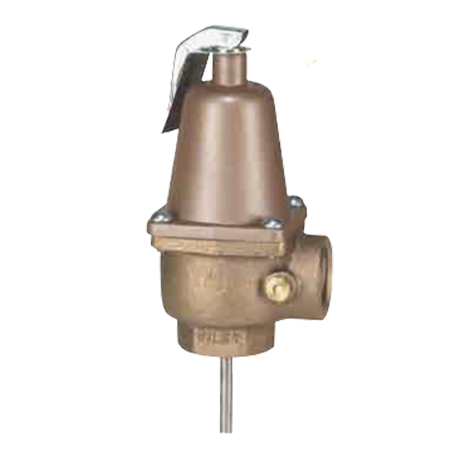

Watts N240X-9 Temperature and Pressure Relief Valve

Watts N240X-9 Temperature and Pressure Relief Valve
Images for general purposes only. Actual may be different than depicted.
Watts N240X-9 Temperature and Pressure Relief Valve

Watts N240X-9 Temperature and Pressure Relief Valve

SKU: N240X-9
Rating:
* This Product is Now Obsolete
0
0
0
0
N240X-9
The Watts 0315180 Series N240X9 is an Automatic Reseating Temperature and Pressure Relief Valve and is designed for use in commercial water heater applications to provide automatic temperature and pressure protection to domestic hot water supply tanks and hot water heaters. They feature a bronze body, stainless steel spring and thermostat tube, tamper-resistant bonnet screws, automatic reseating feature, and test lever. The combined 2-in-1 valve provides the least expensive and proven means for protection against both excessive temperature and pressure emergency conditions.

This valve is obsolete and has been replaced by Watts 0315180
There is also a lead free version available, the Watts 0121589
Features:
  • ASME rate and CSA listed.
  • Temperature Relief: 210°F (99°C),
  • Pressure Relief Range: 150 to 210 PSI
Inlet and Outlet Size 1" x 1" Female
Thermostat Length 9"
CSA Temperature Steam Rating (btu/hr) 730,000
Temperature Relief 210F (99C)
Pressure Range 75 to 150 PSI (5.2 to 10.3 bar)

Following are the Attached files for this product:

Watts Series Automatic Reseating Temperature & Pressure Relief Valve Data Sheet

Q & A: Ask the Questions, share answers

Do you have questions about this product?


Q:
is this set at 150 psig/210 deg f?
Asked on Dec 05, 2017 by Gary from New Britain, CT.
1 Answers

Have an answer? Click Here

A:
The N240X-9 is no longer available and is replaced by the Watts 0121589 is a lead free replacement and is set at 150 PSI and 210°F (99°C).  For a non lead free replacement that is 150 PSI and set to 210°F, see Watts 0315180
Replied on Dec 06, 2017 by Ori from Industrial Stores
