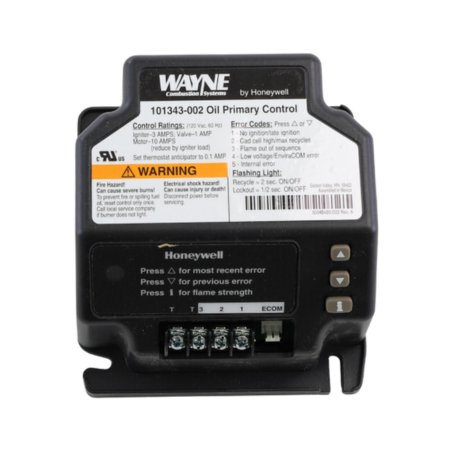

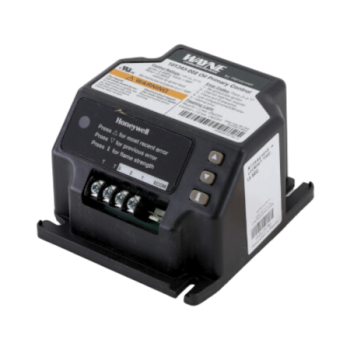

The Wayne Combustion 101343-SER is an oil primary ignition control 15-second lockout time. This device operates with 120 VAC and a 60 Hz power supply. UL Recognized.
Features:
The primary control controls combustion chamber temperature, fuel oil, senses flame, and ignition spark. This also helps notify a remote alarm circuit when in a lockout.
The 101343-SER is a direct replacement for 101266-001 and 101343-002. It is suitable for residential oil-fired burners, forced air furnaces, and water heaters.
| Lockout Time | 15-seconds (Factory-Programmed) |
|---|---|
| Safe Start Check | 5-seconds (Approximately) |
| Recycle Time | 60-seconds (Fixed) |
| Ignition Time | 10-seconds (Fixed) |
| Voltage | 120 VAC (Nominal) |
| Frequency | 60 Hz |
| Approval | UL Recognized |
| Thermostat Current | 100 mA |
| EnviraCOM™ Current | 150 mA |
