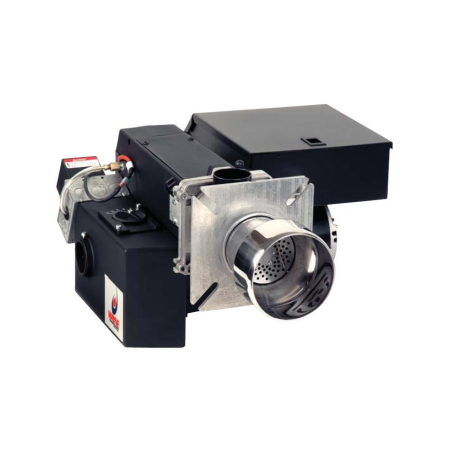

Wayne Combustion 63772-001 Burner LC1500

Wayne Combustion 63772-001 Burner LC1500
Images for general purposes only. Actual may be different than depicted.
Wayne Combustion 63772-001 Burner LC1500

Wayne Combustion 63772-001 Burner LC1500

SKU: 63772-001
Rating: (1)
Quantity Price Stock
Usually Ships 1 - 2 Weeks
Usually Ships 1 - 2 Weeks
$4,903.60     /ea
Usually Ships 1 - 2 Weeks
*Factory requires the purchase of part number 63795-002 also when ordering this replacement burner.
0
$0.00
0
$0.00
0
63772-001
The Wayne Combustion 63772-001 is an LC1500 Power Gas Burner.  The burner uses a direct spark 6,000V ignition to light the flammable gas.  This can fire up to 700 to 1,500,000 Btu/hr and easily converts natural gas to LP.

The unit has a high retention adjustable nozzle mix combustion head and a diecast aluminum alloy fan housing.  The LC1500 is inclusive of a cast aluminum flange that makes it easy to mount on heating appliances.

This Wayne Nighthawk burner is ideal for commercial and industrial applications.  Effective and reliable even in times of high static pressure operation.

Note: Installation shall be done by a professional technician to avoid severe damage and accidents.










Motor 0.5 HP, 3450 RPM, 115 / 208-230, 60HZ
Standard Voltage 120 Vac / 60 Hz 1 Phase
Maximum Input 1.5 MMBtu/hr (440 kw)
Minimum Input 700 MBtu/hr (205 kW)
Air Tube (L x D) 6" x 5.75"
Mounting Flange Fixed Flange
Trial Ignition Time 4 second
Gas Natural Gas or Propane
Gas Train 1.5" CSD-1 components
Approval CSD-1
