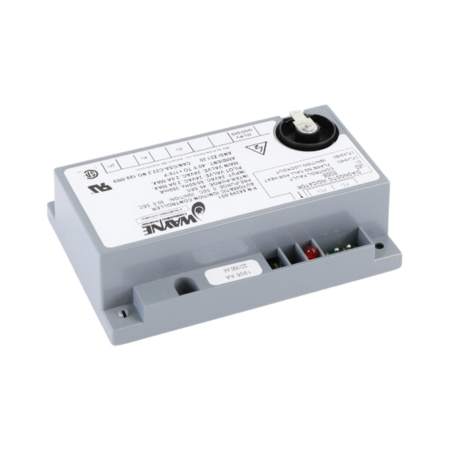

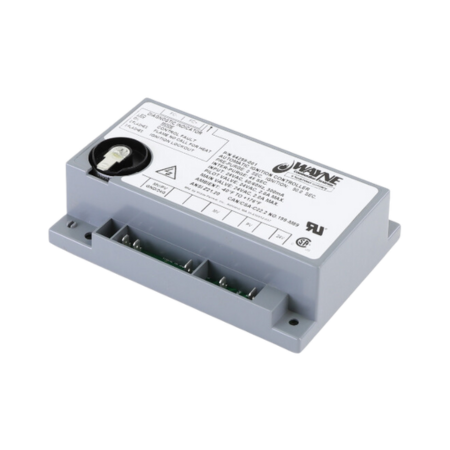

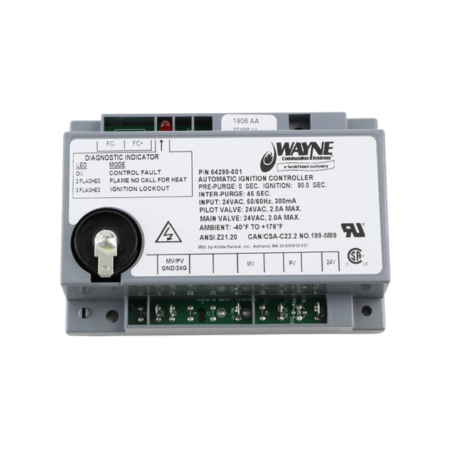

The Wayne Combustion 64299-001 (35-630505-037) is an automatic ignition controller that operates with 24 VAC and 50/60 Hz.  UL Recognized and CSA Listed.

Features:

  • Flame Current Test Points
  • Local or Remote Flame Sensing
  • Safe Start with DETECT-A-FLAME®
  • Alarm Output (Normally Closed Contact)
  • 0-second Pre-purge and 45-second Inter-Purge
  • 90-seconds Trial for Ignition
  • System Diagnostic LED
  • Automatic Reset


The 64299-001 is a direct replacement for 64230-001.  It is suitable for use in boilers, gas furnaces, water heaters, commercial cooking, and gas-fired appliances.

Ignition Timing 90-seconds
Inter-purge 45-seconds
Pre-Purge 0-second
Pilot Valve 24 VAC, 2.0 A Max
Main Valve 24 VAC, 2.0 A Max
Approvals UL and CSA Listed
Voltage 24 VAC
Frequency 50/60 Hz
Amperage 300 mA
Ambient Temperature Range -40°F to 176°F
