Wayne Combustion 64395-001 Ignition Control 24 VAC 50/60 Hz

Name: Wayne Combustion 64395-001 Ignition Control 24 VAC 50/60 Hz
Brand: Wayne Combustion Systems
SKU: 64395-001
Price: 210.61 USD
Availability: OutOfStock

Images for general purposes only. Actual may be different than depicted.

Wayne Combustion 64395-001 Ignition Control 24 VAC 50/60 Hz

SKU: 64395-001

UNSPSC: 25173304

Brand:

Rating:

Quantity	Price	Stock
Usually Ships 2 - 4 Weeks Usually Ships 2 - 4 Weeks	$210.61 /ea	Usually Ships 2 - 4 Weeks

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

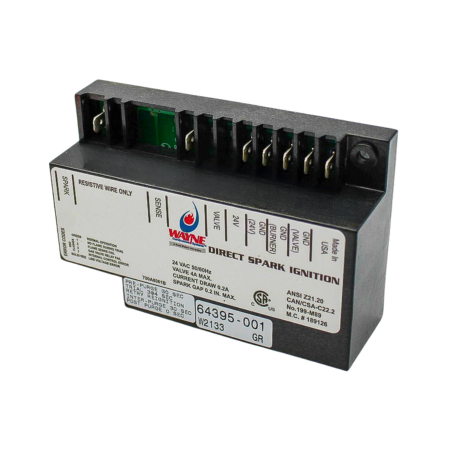

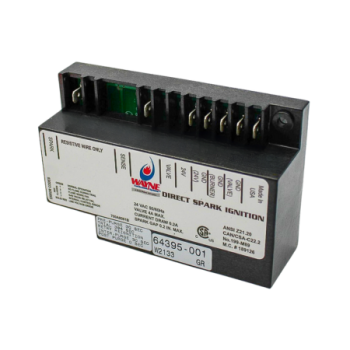

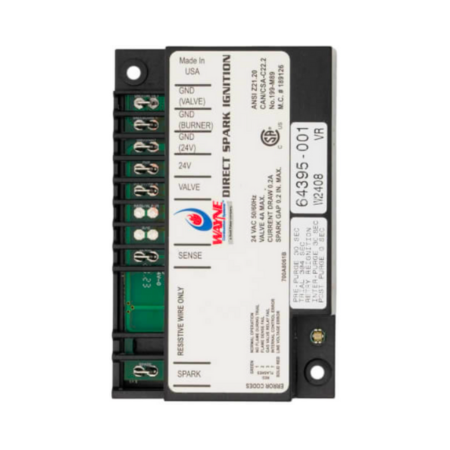

The Wayne Combustion 64395-001 is an ignition control that operates at 24 VAC and 50/60 Hz power ratings. It is CSA Listed, ensuring safety compliance.

This device features a multi-try direct spark system, that precisely controls the ignition process of the burner, ensuring efficient and reliable ignition and burner control.

The 64395-001 is compatible with P250AF or P265F series gas burners, DI-E series oil burners, and other burners with electrical enclosures.

Number of Try	Multi-Try
Voltage	24 VAC
Frequency	50/60 Hz
Ignition	Direct Spark
Maximum Spark Gap	0.2”
Maximum Valve Load	4A
Current Draw	0.2A
Approval	CSA Listed
Application	Burners with Electrical Enclosures
Compatible Series	P250AF/P265F and DI-E Series
