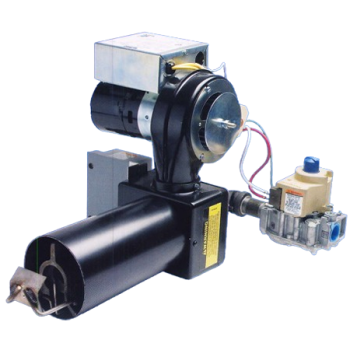

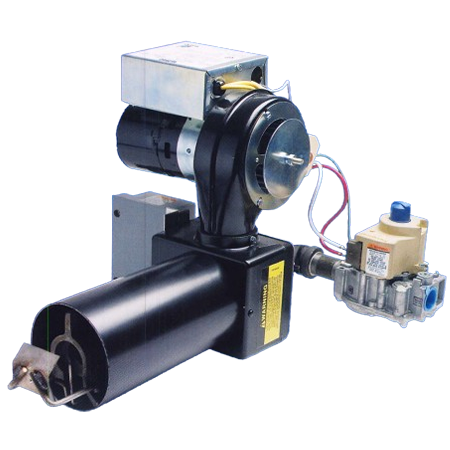

Wayne Combustion 64488 Natural Gas Boiler Burner P265F DIN 120V

Wayne Combustion 64488 Natural Gas Boiler Burner P265F DIN 120V
Images for general purposes only. Actual may be different than depicted.
Wayne Combustion 64488 Natural Gas Boiler Burner P265F DIN 120V

Wayne Combustion 64488 Natural Gas Boiler Burner P265F DIN 120V

SKU: 64488
Rating:
Quantity Price Stock
1
Usually Ships 1 - 2 Weeks
$1,326.25     /ea
1
0
$0.00
0
$0.00
0
64488
The 64488 (P265F) is a natural gas boiler burner that has an electrical rating of 120V, 50/60 Hz, and a 24V gas valve.  It has a 1/2" NPT gas connection size, 4" air tube diameter, and fires up to 65,000 to 200,000 Btu/hr output capacity.  UL-recognized.

The natural gas burner is suitable for use with furnaces, boilers, and water heater applications.  The unit uses a direct spark ignition source and is constructed with a fixed flame spreader that allows it to consistently provide a bushy and round flame.

The 64488 is quick and easy to install with a 6-3/8" maximum insertion.
Voltage 120V
Frequency 50/60 Hz
Gas Type Natural Gas
Input Capacity 65,000 to 200,000 Btu/hr
Natural Gas Pressure Required 4.5" W.C
Ignition Source Direct Spark Ignition
Gas Valve Voltage 24V
Air Tube Diameter 4"
Gas Connection Size 1/2" NPT
Approvals UL-recognized
