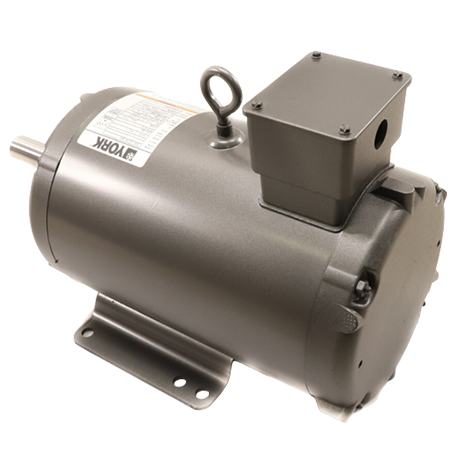

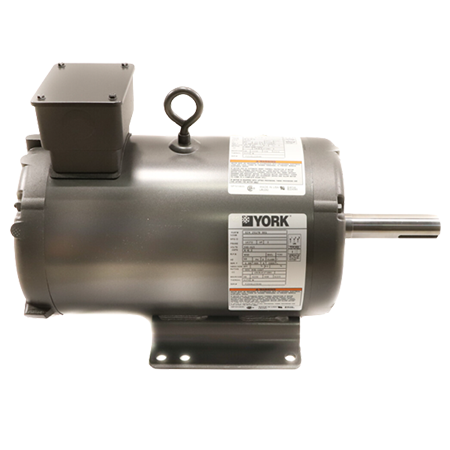

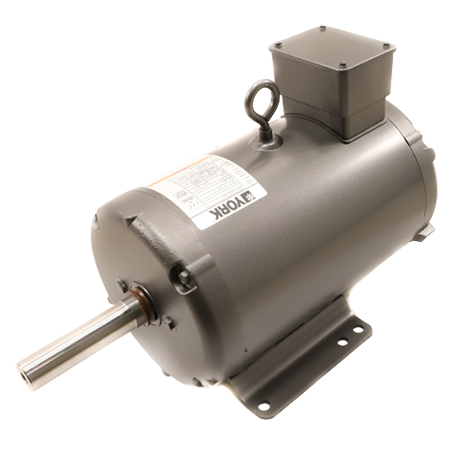

York 024-25179-001 Motor 3Hp 460V 3-Phase

Name: York 024-25179-001 Motor 3Hp 460V 3-Phase
Brand: York
SKU: 024-25179-001
Price: 1158.16 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

York 024-25179-001 Motor 3Hp 460V 3-Phase

SKU: 024-25179-001

Brand:

Rating:

Quantity	Price	Stock
1 Usually Ships 1 - 2 Weeks	$1,158.16 /ea	1

Add to Cart

Add to Wishlist

Shipping Note

Ships via LTL ( Truck )

The 024-25179-001 found on this page, is a direct replacement for the following obsolete item(s):

Obsolete Product	SKU
York 024-25179-101 Fan Motor TEAO 3 Hp 6-Pole	024-25179-101 Brand York

Add to Cart

Add to Wishlist

The 024-25179-001 is a three-phase motor that has a power rating of 3HP, 380V to 460V, 6 to 6.2A, and 50 Hz frequency. The class F motor rotates at a speed of up to 950 RPM. UL-recognized and CSA-certified.

The three-phase motor is suitable for air-cooled packaged liquid chiller applications. The motor is used to rotate the fan and provide airflow to the finned coils that help heat transfer. The 026-33612-000 sleeve and 375-82909-000 spacer kit accessories are also available.

The 024-25179-001 is compatible with the following York models:

YEAJ777PX6
YEAJ878PX6
YEAJ888RX6
YEAJ999RY6
YEAJ76HU6
YEAJ77HU6
YEAJ88MU6
YEAJ98MV6
YEAJ99MW6

Voltage	380 to 460V
Horsepower	3HP
Number of Phases	Three-Phase
Frequency	50 Hz
Rotation Speed	950 RPM
Approvals	UL-recognized and CSA-certified
Insulation	Class F

Be the first to write a review

Q & A: Ask the Questions, share answers

Do you have questions about this product?

Submit a New Question

I need this product for 4pcs , please give me your best price and delivery to indonesia

Asked on November 01, 2018 by Asadurobbi from Indoneasi

1 Answers

Have an answer? Click Here

For a complete official quote you will need to visit our Request a Quote page. Currently we have one of these motors in stock, lead time on the remaining motors is approximately 1-2 weeks.
Unfortunately these motors have to ship from LTL Truck, so they would no be eligible to ship from us to Indonesia. We could ship them to a freight-forwarder in the US and you could then work out your own overseas shipping options through that freight forwarder. The cost for 4 units would be $3,355.84 plus LTL freight.

Replied on November 01, 2018 by Ron from Industrial Stores
