York 024-27322-103 Condenser Fan Motor 3-Phase 200V 2Hp 60 Hz 1140 RPM

York 024-27322-103 Condenser Fan Motor 3-Phase 200V 2Hp 60 Hz 1140 RPM
Images for general purposes only. Actual may be different than depicted.
York 024-27322-103 Condenser Fan Motor 3-Phase 200V 2Hp 60 Hz 1140 RPM York 024-27322-103 Condenser Fan Motor 3-Phase 200V 2Hp York 024-27322-103 Condenser Fan Motor 3-Phase 200V 2Hp 1140 RPM

York 024-27322-103 Condenser Fan Motor 3-Phase 200V 2Hp 60 Hz 1140 RPM

SKU: 024-27322-103
Rating:
Quantity Price Stock
6
Usually Ships 1 - 2 Weeks
$1,387.45     /ea
6
0
$0.00
0
$0.00
0
024-27322-103

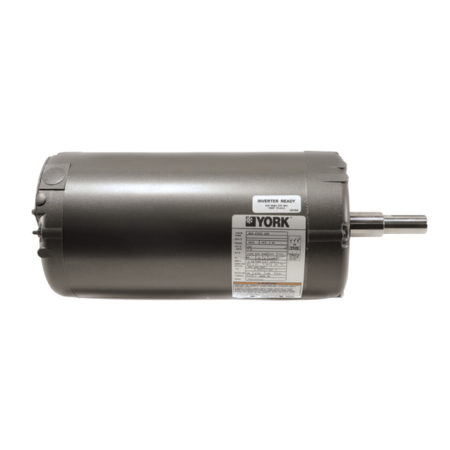

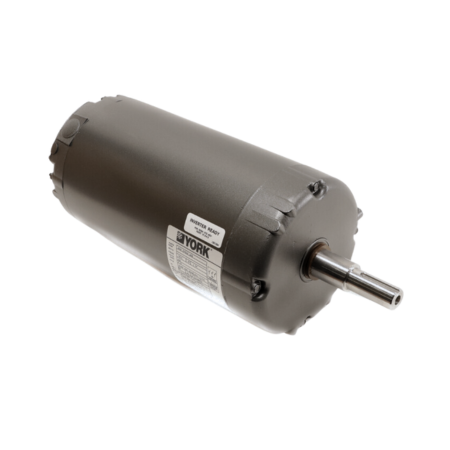

The York 024-27322-103 is a 3-phase condenser fan motor that operates at 2Hp, 200V, and 60 Hz.

The shaft rotates at 1140 RPM speed and continuously runs at 65° maximum ambient temperature.

The motor features a 56YZ frame, Class F insulation, and a totally enclosed air-over (TEAO) enclosure.

The 024-27322-103 directly replaces 024-27322-003.  It is compatible for use with an air-cooled condensing unit.
Temperature Rating 65°C AMB-CONT
Insulation Class Class F
Motor Frame 56YZ
Horsepower 2Hp
Voltage 200V
Frequency 60 Hz
Amperage 7.3A
Number of Phase 3-Phase
Rotation Speed 1140 RPM
Motor Enclosure Totally Enclosed Air Over (TEAO)
