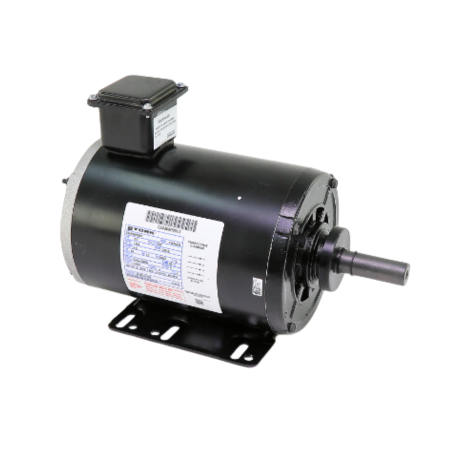

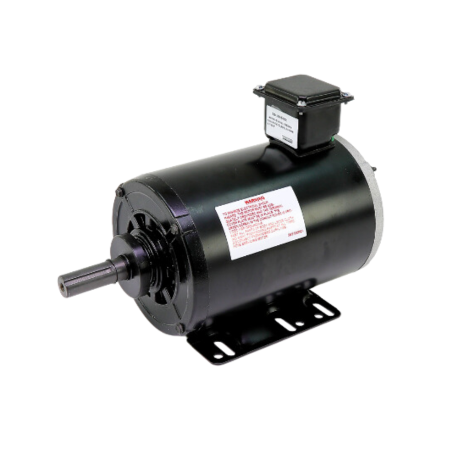

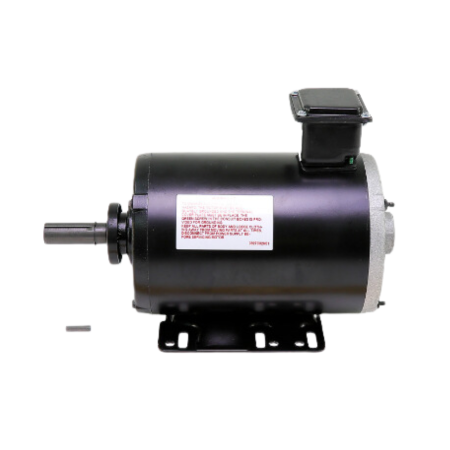

York 024-30900-001 Condenser Fan Motor 2 Hp 460 V 3-Phase 1160 RPM

York 024-30900-001 Condenser Fan Motor 2 Hp 460 V 3-Phase 1160 RPM
Images for general purposes only. Actual may be different than depicted.
York 024-30900-001 Condenser Fan Motor 2 Hp 460 V 3-Phase 1160 RPM ! York 024-30900-001 Condenser Fan Motor 3-Phase 460V 60 Hz 2Hp York 024-30900-001 Condenser Fan Motor 3-Phase 460V 60 Hz 2Hp 1155 RPM Clockwise

York 024-30900-001 Condenser Fan Motor 2 Hp 460 V 3-Phase 1160 RPM

SKU: 024-30900-001
Rating:
Quantity Price Stock
16
Usually Ships 1 - 2 Weeks
$774.09     /ea
16
0
$0.00
0
$0.00
0
024-30900-001
The York 024-30900-001 is a 3-phase condenser fan motor that operates with a 2Hp, 460V, and 60 Hz power rating.

The component has Class F insulation and a 56HZ frame size.  This rotates at 1155 RPM in a clockwise lead-end direction.

The condenser fan motor helps circulate air over the condenser coils.  This device features a thermal protection switch for safety.

The 024-30900-001 directly replaces S1-02430900001.  It is suitable for residential and commercial air conditioning systems.
Ambient Temperature 60°C
Insulation Class Class F
Motor Cooling Air Over
Service Factor 1.0
Rotation Direction Clockwise Lead End
Frame Size 56HZ
Rotation Speed 1155 RPM
Power Supply 2Hp, 460V, 60 Hz, and 4 Amp
Number of Phase 3-Phase
Motor Duty Continuous
