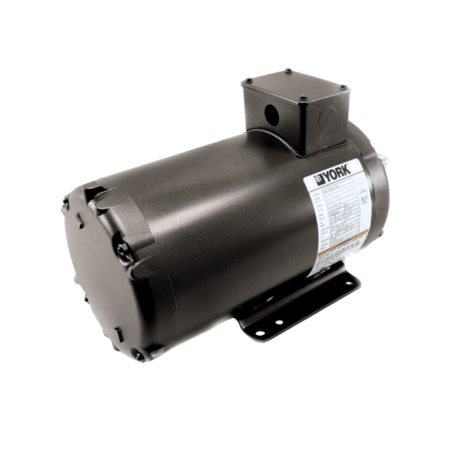

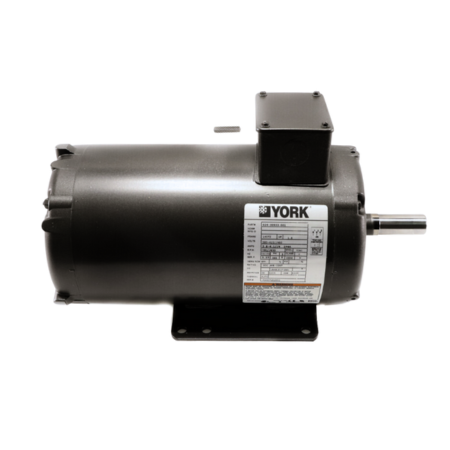

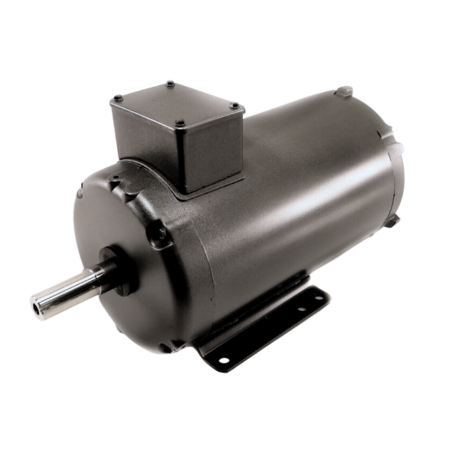

York 024-30933-001 Condenser Fan Motor 3-Phase 460V 60 Hz 1.8Hp 850 RPM

York 024-30933-001 Condenser Fan Motor 3-Phase 460V 60 Hz 1.8Hp 850 RPM
Images for general purposes only. Actual may be different than depicted.
York 024-30933-001 Condenser Fan Motor 3-Phase 460V 60 Hz 1.8Hp 850 RPM York 024-30933-001 Fan Motor 460V 2Hp York 024-30933-001 Fan Motor 460V 2Hp 850 RPM

York 024-30933-001 Condenser Fan Motor 3-Phase 460V 60 Hz 1.8Hp 850 RPM

SKU: 024-30933-001
Rating:
Quantity Price Stock
9
Usually Ships 1 - 2 Weeks
$753.65     /ea
9

Shipping Note

Ships via LTL ( Truck )

0
$0.00
0
$0.00
0
024-30933-001
The York 024-30933-001 is a 3-phase motor that operates with 4A, 1.8Hp, 60V, and 60 Hz power supply.

The shaft rotates at 850 RPM speed and continuously runs at 60° maximum ambient temperature.

The motor features a 145TZ frame, Class F insulation, and a totally enclosed air-over (TEAO) enclosure.

The 024-30933-001 is compatible with condensers, air handlers, and rooftop units.
Motor Frame 145TZ
Horsepower 1.8Hp
Voltage 460V
Frequency 60 Hz
Amperage 4A
Rotation Speed 850 RPM
Number of Phase 3-Phase
Motor Enclosure Totally Enclosed Air Over (TEAO)
Insulation Class Class F
Temperature Rating 60°C AMB-CONT
