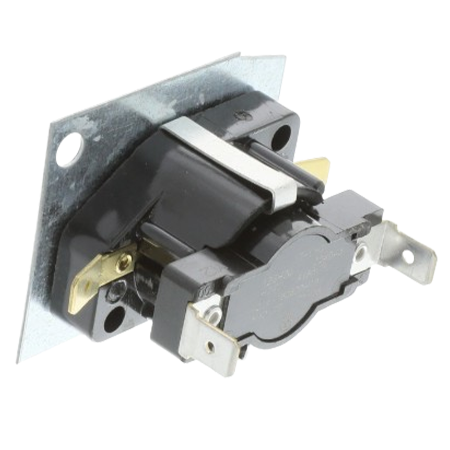

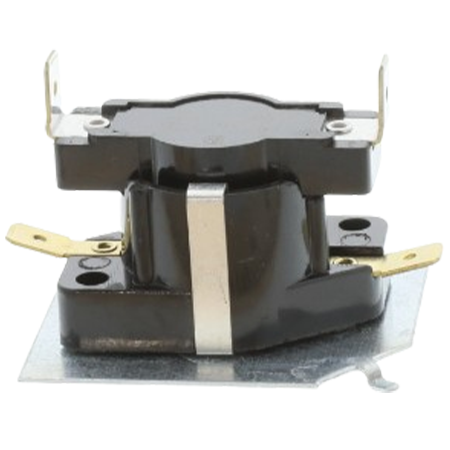

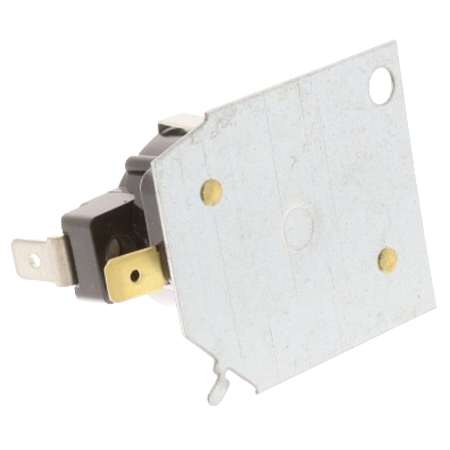

York S1-024-19082-019 Heat Sequencer Relay 24V

Name: York S1-024-19082-019 Heat Sequencer Relay 24V
Brand: York
SKU: S1-024-19082-019
Price: 81.07 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

York S1-024-19082-019 Heat Sequencer Relay 24V

SKU: S1-024-19082-019

Tariff HS Code: 8536140020

Brand:

Rating:

Quantity	Price	Stock
1 Usually Ships 1 - 2 Weeks	$81.07 /ea	1

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

The S1-024-19082-019 is an SPST heat sequencer relay that operates at 24V. It has 1 switch that turns on in 30 to 90 seconds and power off in 1 to 35 seconds. CSA-certified.

The heat sequencer relay is used to control the operation of heating elements such as blower motors in electric gas or heating systems. The unit turns systems one by one with a delay which prevents large current surges for safe operation.

The S1-024-19082-019 is easy to install with a quick-connect terminal and can be mounted in any position. It is designed with shock and vibration-resistant construction for longer life.

Ambient Operating Temperature	-50 to 165°F (-45.5 to 73.8°C
Approvals	CSA-certified
Contact Rating at 480V	12.5A
Contact Rating at 120/240V	25A
Switching	SPST
Voltage	24V
Mounting Position	Any
Terminal	Quick-Connect
Turn On Time	30 to 90 seconds
Turn Off Time	1 to 35 seconds
