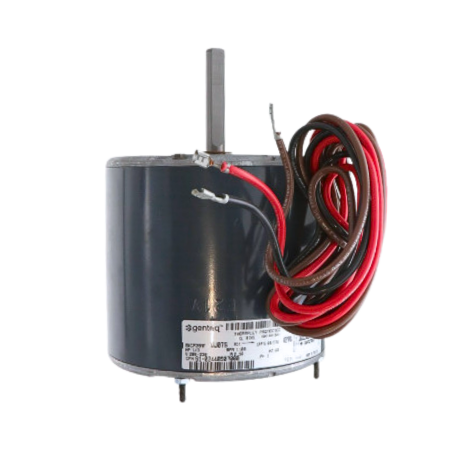

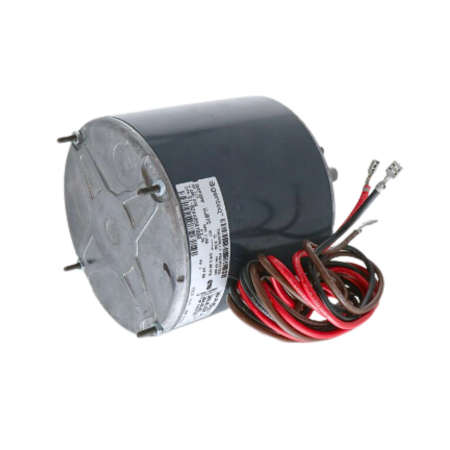

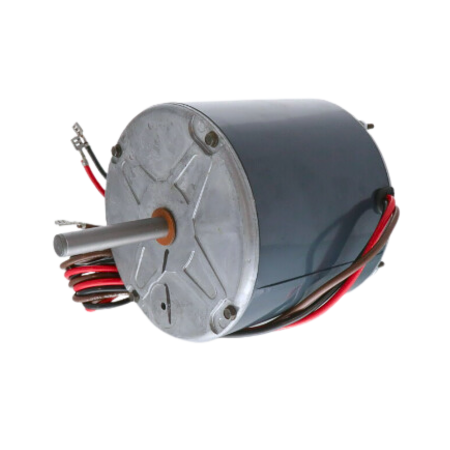

The York S1-024-40907-000 is a single-phase condenser fan motor that operates at 1/3Hp, 208-230V, and 60 Hz power rating. CSA Listed and UL Recognized.
The motor is thermally protected and has Class B insulation. The shaft rotates 1100 RPM in a clockwise direction at 1-speed to distribute air into the ducts.
The S1-024-40907-000 directly replaces S1-024-25820-700, S1-024-32029-000, and S1-024-36002-000. Compatible with the following heat pump and RTU model series:
| Number of Phase | Single-Phase |
|---|---|
| Voltage | 208-230V |
| Frequency | 60 Hz |
| Horsepower | 1/3Hp |
| Approvals | UL and CSA Listed |
| Motor Rotation | 1-Speed |
| Rotation Speed | 1100 RPM |
| Rotation Direction | Clockwise |
| Insulation Class | Class B |
| Capacitor | 5.0MFD/370V |
