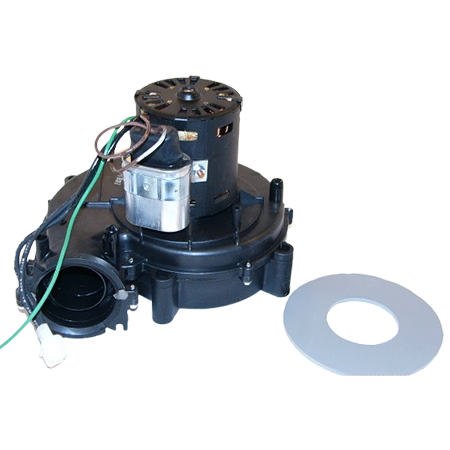

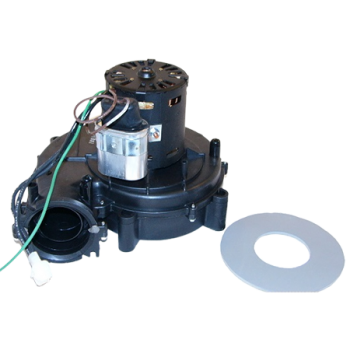

The S1-37320717001 is a draft inducer motor assembly consisting of a motor, blower wheel, and blower housing. The motor has a power rating of 115V, 0.7 A and rotates at a speed of 3450 RPM.
The venter assembly is used to pull air and prevent harmful gases produced by the furnace from entering the ventilation system by exhausting the air into the ductwork until it reaches outside. The assembly also includes an S1-02812498000 gasket for easy installation.
The S1-37320717001 is a replacement for S1-02427641000.
| Voltage | 115V |
|---|---|
| Amperage | 0.7 |
| Rotation Speed | 3450 RPM |
