York S1-6007532 Condenser Fan Motor 1-Phase 460V 1/3Hp 60 Hz 850 RPM CCWLE

York S1-6007532 Condenser Fan Motor 1-Phase 460V 1/3Hp 60 Hz 850 RPM CCWLE
Images for general purposes only. Actual may be different than depicted.
York S1-6007532 Condenser Fan Motor 1-Phase 460V 1/3Hp 60 Hz 850 RPM CCWLE York S1-6007532 Single-Phase Condenser Fan Motor 460V 60 Hz 850 RPM CCWLE

York S1-6007532 Condenser Fan Motor 1-Phase 460V 1/3Hp 60 Hz 850 RPM CCWLE

SKU: S1-6007532
Rating:
Quantity Price Stock
124
Usually Ships 1 - 2 Weeks
$419.38     /ea
124

The S1-6007532 found on this page, is a direct replacement for the following obsolete item(s):

Obsolete Product SKU
York S1-02434550002 1/3 Hp 460 V 850RPM Motor with Rain Shield S1-024-34550-002

Brand York
York S1-02434550002 1/3 Hp 460 V 850RPM Motor with Rain Shield
0
$0.00
0
$0.00
0
S1-6007532

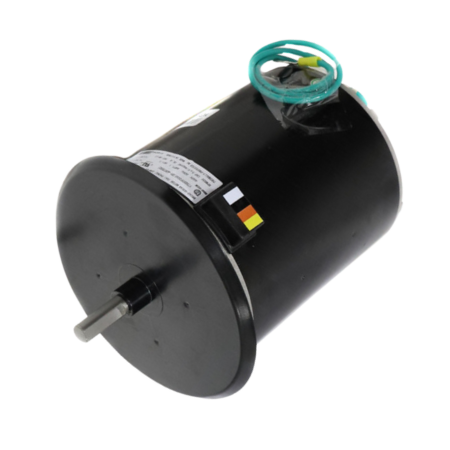

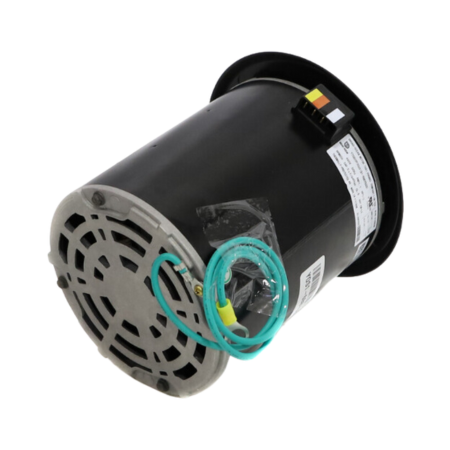

The York S1-6007532 is a single-phase condenser fan motor with a rain shield.  This device operates at 1/3Hp, 460V, and 60 Hz.  UL Recognized.

The condenser fan motor is thermally protected and has Class B insulation.  The shaft rotates at 850 RPM in a counterclockwise lead-end direction.

The S1-6007532 is a direct replacement for the obsolete model S1-02434550-002.  It is compatible with furnaces, air conditioners, and heat pumps.
Frequency 60 Hz
Amperage 1.1A
Rotation Speed 850 RPM
Rotation Direction CCWLE
Approval UL Recognized
Number of Phase Single-Phase
Voltage 460V
Insulation Class Class B
Capacitor Required 5MFD/440VAC
Horsepower 1/3Hp
